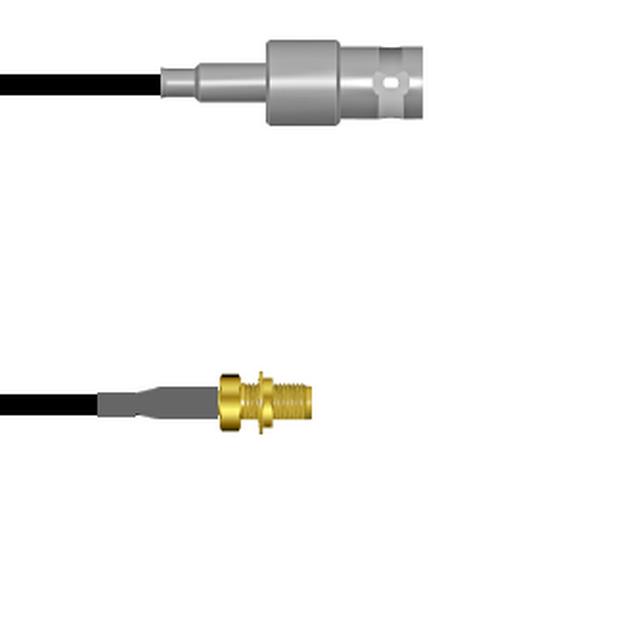

CBL ASSY BNC-SMA JACK-JACK 36"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0302W0003036i

Active

Amphenol Custom Cable

CBL ASSY BNC-SMA JACK-JACK 36"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0302W0003036i

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	SMA Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	91.44 cm
Length	36 in
Overall Impedance	50 Ohms
Style	BNC to SMA

Q-0302W0 Series

Part	1st Contact Gender	Color	2nd Contact Gender	Features	1st Connector Mounting Type	Frequency - Max [Max]	Cable Type	Overall Impedance	1st Connector	Style	2nd Connector	2nd Connector Mounting Feature	Length	Length	Length	2nd Connector Mounting Type
Amphenol Custom Cable Q-0302W0005108i	Female	Copper	Female	Shielded	Free Hanging (In-Line)	4 GHz	RG-316	50 Ohms	BNC Jack	BNC to SMA	SMA Jack	Bulkhead - Front Side Nut	2.7 m	9 ft	108 in	Panel Mount
Amphenol Custom Cable Q-0302W0005060i	Female	Copper	Female	Shielded	Free Hanging (In-Line)	4 GHz	RG-316	50 Ohms	BNC Jack	BNC to SMA	SMA Jack	Bulkhead - Front Side Nut	1.5 m	5 ft	5 '	Panel Mount
Amphenol Custom Cable Q-0302W0005012i	Female	Copper	Female	Shielded	Free Hanging (In-Line)	4 GHz	RG-316	50 Ohms	BNC Jack	BNC to SMA	SMA Jack	Bulkhead - Front Side Nut	304.8 mm		12 "	Panel Mount
Amphenol Custom Cable Q-0302W0003048i	Female	Black	Female	Shielded	Free Hanging (In-Line)	4 GHz	RG-174	50 Ohms	BNC Jack	BNC to SMA	SMA Jack	Bulkhead - Front Side Nut	1200 mm	4 ft	48 in	Panel Mount
Amphenol Custom Cable Q-0302W00032.5M	Female	Black	Female	Shielded	Free Hanging (In-Line)	4 GHz	RG-174	50 Ohms	BNC Jack	BNC to SMA	SMA Jack	Bulkhead - Front Side Nut	2.5 m	8.2 '	98.4 in	Panel Mount
Amphenol Custom Cable Q-0302W0003036i	Female	Black	Female	Shielded	Free Hanging (In-Line)	4 GHz	RG-174	50 Ohms	BNC Jack	BNC to SMA	SMA Jack	Bulkhead - Front Side Nut	91.44 cm		36 in	Panel Mount
Amphenol Custom Cable Q-0302W0003060i	Female	Black	Female	Shielded	Free Hanging (In-Line)	4 GHz	RG-174	50 Ohms	BNC Jack	BNC to SMA	SMA Jack	Bulkhead - Front Side Nut	1.5 m	5 ft	5 '	Panel Mount
Amphenol Custom Cable Q-0302W00052.5M	Female	Copper	Female	Shielded	Free Hanging (In-Line)	4 GHz	RG-316	50 Ohms	BNC Jack	BNC to SMA	SMA Jack	Bulkhead - Front Side Nut	2.5 m	8.2 '	98.4 in	Panel Mount
Amphenol Custom Cable Q-0302W0005003M	Female	Copper	Female	Shielded	Free Hanging (In-Line)	4 GHz	RG-316	50 Ohms	BNC Jack	BNC to SMA	SMA Jack	Bulkhead - Front Side Nut	3 m	9.8 '	118.1 in	Panel Mount
Amphenol Custom Cable Q-0302W0003024i	Female	Black	Female	Shielded	Free Hanging (In-Line)	4 GHz	RG-174	50 Ohms	BNC Jack	BNC to SMA	SMA Jack	Bulkhead - Front Side Nut	609.6 mm		24 "	Panel Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 74.02
		25	$ 72.57
		50	$ 71.12
		100	$ 69.67
		250	$ 68.22

Description

General part information

Q-0302W0 Series

Cable Assembly Coaxial BNC to SMA RG-174 36.00" (914.40mm)
