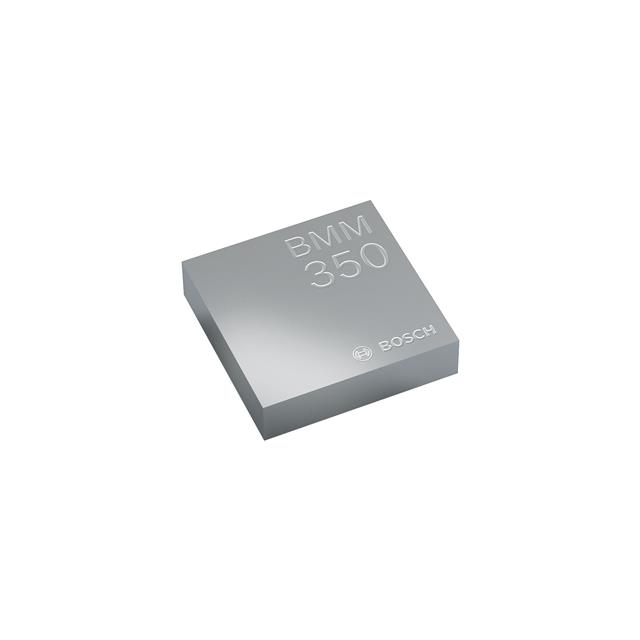

BMM350
ActiveBosch Sensortec
THREE-AXIS GEOMAGNETIC SENSOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BMM350
ActiveBosch Sensortec
THREE-AXIS GEOMAGNETIC SENSOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BMM350 |
|---|---|
| Axis [x] | X |
| Axis [y] | Y |
| Axis [z] | Z |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | I3C, I2C |
| Package / Case | 9-BGA, WLCSP |
| Resolution | 16 b |
| Sensing Range [Max] | 2 mT |
| Sensing Range [Min] | -2 mT |
| Supplier Device Package | 9-WLCSP (1.28x1.28) |
| Technology | Magnetoresistive |
| Voltage - Supply [Max] | 1.98 V |
| Voltage - Supply [Min] | 1.72 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.60 | |
| 5 | $ 2.19 | |||
| 10 | $ 2.04 | |||
| 25 | $ 1.85 | |||
| 50 | $ 1.72 | |||
| 100 | $ 1.60 | |||
| 500 | $ 1.35 | |||
| 1000 | $ 1.25 | |||
| 5000 | $ 1.06 | |||
| Digi-Reel® | 1 | $ 2.60 | ||
| 5 | $ 2.19 | |||
| 10 | $ 2.04 | |||
| 25 | $ 1.85 | |||
| 50 | $ 1.72 | |||
| 100 | $ 1.60 | |||
| 500 | $ 1.35 | |||
| 1000 | $ 1.25 | |||
| 5000 | $ 1.06 | |||
| Tape & Reel (TR) | 10000 | $ 1.00 | ||
Description
General part information
BMM350 Series
Magnetoresistive Sensor X, Y, Z Axis 9-WLCSP (1.28x1.28)
