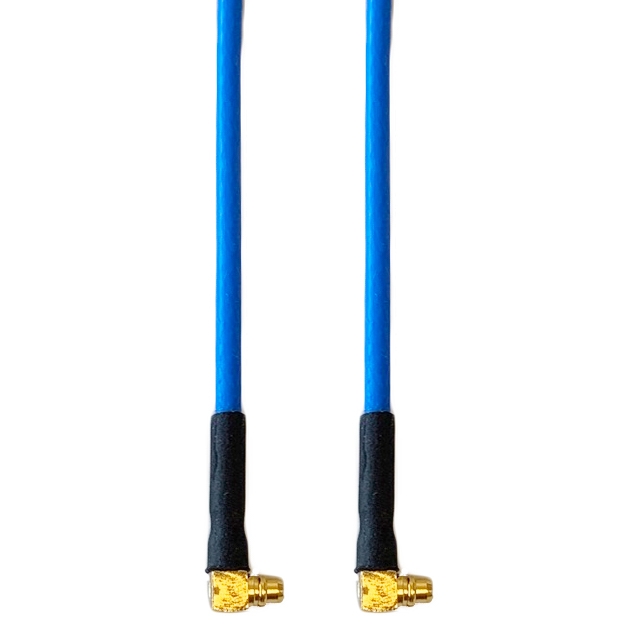

LSA28-2M2M-S06

Active

ConductRF

CBL ASSY MMCX PLUG TO PLUG 6"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LSA28-2M2M-S06

Active

ConductRF

CBL ASSY MMCX PLUG TO PLUG 6"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LSA28-2M2M-S06

1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	MMCX Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	0.085 "
Color	Blue
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	152.4 mm
Length	6 in
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Impedance	50 Ohms
Style	MMCX to MMCX

LSA28 Series

Part	Cable Type	2nd Connector Mounting Type	Features	Overall Impedance	Color	Style	Operating Temperature [Min]	Operating Temperature [Max]	1st Connector Mounting Type	2nd Connector	Connector Impedance	2nd Contact Gender	1st Contact Gender	1st Connector	Frequency - Max [Max]	Length	Length	Length [x]	Length [x]	Cable Type
ConductRF LSA28-S1M2-S12	0.085 "	Free Hanging (In-Line)	Shielded	50 Ohms	Blue	SMA to MCX	-55 °C	125 °C	Free Hanging (In-Line)	SMA Plug	50 Ohms	Male	Male	MCX Plug Right Angle	6000 MHz	12 "	304.8 mm
ConductRF LSA28-M1M1-S06	0.085 "	Free Hanging (In-Line)	Shielded	50 Ohms	Blue	MCX to MCX	-55 °C	125 °C	Free Hanging (In-Line)	MCX Plug	50 Ohms	Male	Male	MCX Plug	6000 MHz	6 in	152.4 mm
ConductRF LSA28-S1M1-S06	0.085 "	Free Hanging (In-Line)	Shielded	50 Ohms	Blue	SMA to MCX	-55 °C	125 °C	Free Hanging (In-Line)	SMA Plug	50 Ohms	Male	Male	MCX Plug	6000 MHz	6 in	152.4 mm
ConductRF LSA28-M2M2-S18	0.085 "	Free Hanging (In-Line)	Shielded	50 Ohms	Blue	MCX to MCX	-55 °C	125 °C	Free Hanging (In-Line)	MCX Plug Right Angle	50 Ohms	Male	Male	MCX Plug Right Angle	6000 MHz			457.2 mm	457.2 mm
ConductRF LSA28-S11M-S18	0.085 "	Free Hanging (In-Line)	Shielded	50 Ohms	Blue	SMA to MMCX	-55 °C	125 °C	Free Hanging (In-Line)	MMCX Plug	50 Ohms	Male	Male	SMA Plug	6000 MHz			457.2 mm	457.2 mm
ConductRF LSA28-M2M2-S12	0.085 "	Free Hanging (In-Line)	Shielded	50 Ohms	Blue	MCX to MCX	-55 °C	125 °C	Free Hanging (In-Line)	MCX Plug Right Angle	50 Ohms	Male	Male	MCX Plug Right Angle	6000 MHz	12 "	304.8 mm
ConductRF LSA28-S2S2-S08		Free Hanging (In-Line)	Shielded	50 Ohms	Blue	SMA to SMA	-55 °C	125 °C	Free Hanging (In-Line)	SMA Plug Right Angle	50 Ohms	Male	Male	Right Angle SMA Plug	18 GHz	8 in	203.2 mm			2.18mm OD Coaxial Cable
ConductRF LSA28-S2M1-S18		Free Hanging (In-Line)	Shielded	50 Ohms	Blue	SMA to MCX	-55 °C	125 °C	Free Hanging (In-Line)	SMA Plug Right Angle	50 Ohms	Male	Male	MCX Plug	18 GHz			457.2 mm	457.2 mm	2.18mm OD Coaxial Cable
ConductRF LSA28-2M2M-S06	0.085 "	Free Hanging (In-Line)	Shielded	50 Ohms	Blue	MMCX to MMCX	-55 °C	125 °C	Free Hanging (In-Line)	MMCX Plug Right Angle	50 Ohms	Male	Male		6000 MHz	6 in	152.4 mm
ConductRF LSA28-S1S1-S12		Free Hanging (In-Line)	Shielded	50 Ohms	Blue	SMA to SMA	-55 °C	125 °C	Free Hanging (In-Line)	SMA Plug	50 Ohms	Male	Male	SMA Plug	18 GHz	12 "	304.8 mm			2.18mm OD Coaxial Cable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 40.79
		5	$ 38.40
		10	$ 36.27
		25	$ 32.63
		50	$ 29.67
		100	$ 28.38
		250	$ 27.20
		500	$ 26.11
		1000	$ 25.11

Description

General part information

LSA28 Series

Cable Assembly Coaxial MMCX to MMCX 0.085" Flexible Cable 6.000" (152.40mm)
