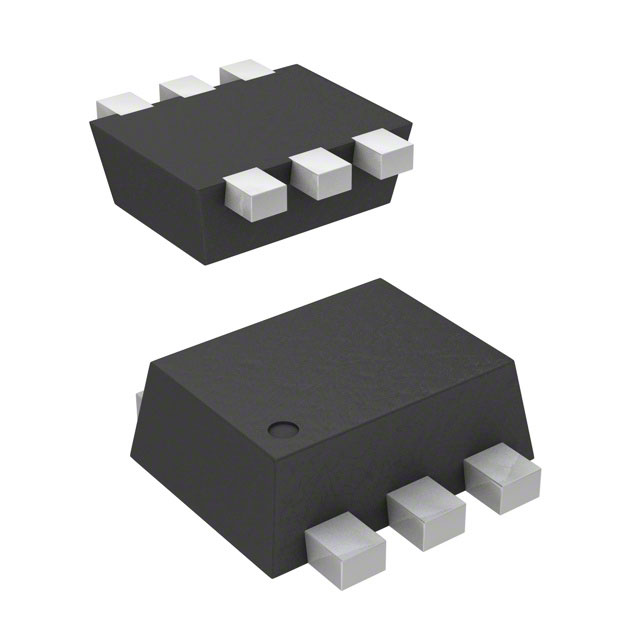

RT5762BHGH6F
ActiveRichtek USA Inc.
IC REG BUCK ADJ 2A SOT563
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RT5762BHGH6F
ActiveRichtek USA Inc.
IC REG BUCK ADJ 2A SOT563
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RT5762BHGH6F |
|---|---|
| Current - Output | 2 A |
| Frequency - Switching | 1.2 MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | SOT-666, SOT-563 |
| Supplier Device Package | SOT-563 (FC) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 6 V |
| Voltage - Input (Min) [Min] | 2.5 V |
| Voltage - Output (Min/Fixed) | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.95 | |
| 10 | $ 0.58 | |||
| 25 | $ 0.48 | |||
| 100 | $ 0.37 | |||
| 250 | $ 0.31 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.25 | |||
| 2500 | $ 0.22 | |||
| Digi-Reel® | 1 | $ 0.95 | ||
| 10 | $ 0.58 | |||
| 25 | $ 0.48 | |||
| 100 | $ 0.37 | |||
| 250 | $ 0.31 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.25 | |||
| 2500 | $ 0.22 | |||
| Tape & Reel (TR) | 5000 | $ 0.20 | ||
| 10000 | $ 0.18 | |||
| 15000 | $ 0.17 | |||
| 25000 | $ 0.17 | |||
Description
General part information
RT5762 Series
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 2A SOT-563, SOT-666
