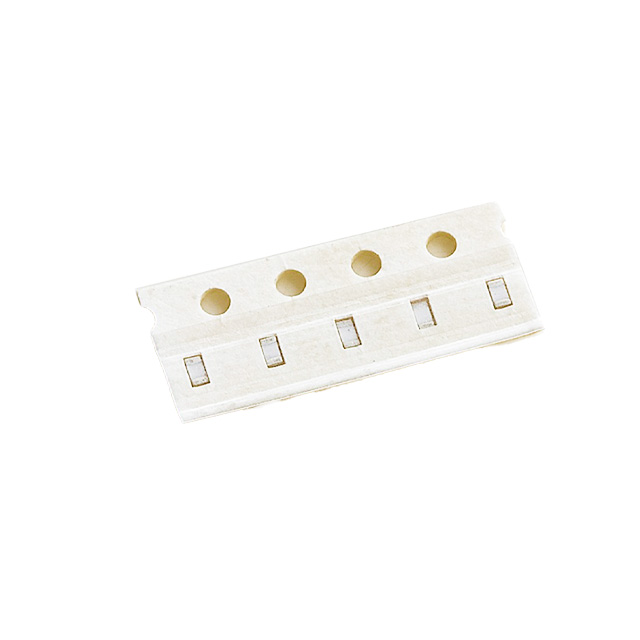

F0603-5A

Active

OptiFuse

FUSE BRD MNT 5A 32VAC 32VDC 0603

Search across all available documentation for this part.

Active

OptiFuse

FUSE BRD MNT 5A 32VAC 32VDC 0603

Technical Specifications

Parameters and characteristics for this part

Specification	F0603-5A

Approval Agency	UL 248
Breaking Capacity @ Rated Voltage	35 A
Current Rating (Amps)	5 A
DC Cold Resistance	10.5 mOhms
Fuse Type	Board Mount
Melting I²t	1.1
Mounting Type	Surface Mount
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-55 °C
Package / Case	0603 (1608 Metric)
Response Time	Fast Blow
Size / Dimension [x]	1.6 mm
Size / Dimension [x]	0.063 in
Size / Dimension [y]	0.034 "
Size / Dimension [y]	0.86 mm
Size / Dimension [z]	0.48 mm
Size / Dimension [z]	0.019 "
Voltage Rating - AC	32 V
Voltage Rating - DC	32 V

Part	Melting I²t	DC Cold Resistance	Package / Case	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Response Time	Breaking Capacity @ Rated Voltage	Voltage Rating - AC	Mounting Type	Approval Agency	Fuse Type	Current Rating (Amps)	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]
OptiFuse F0603-5A	1.1	10.5 mOhms	0603 (1608 Metric)	1.6 mm	0.48 mm	0.034 "	0.019 "	0.063 in	0.86 mm	Fast Blow	35 A	32 V	Surface Mount	UL 248	Board Mount	5 A	32 V	90 °C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	4000	$ 0.27

General part information

5 A 32 V AC 32 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 0603 (1608 Metric)
