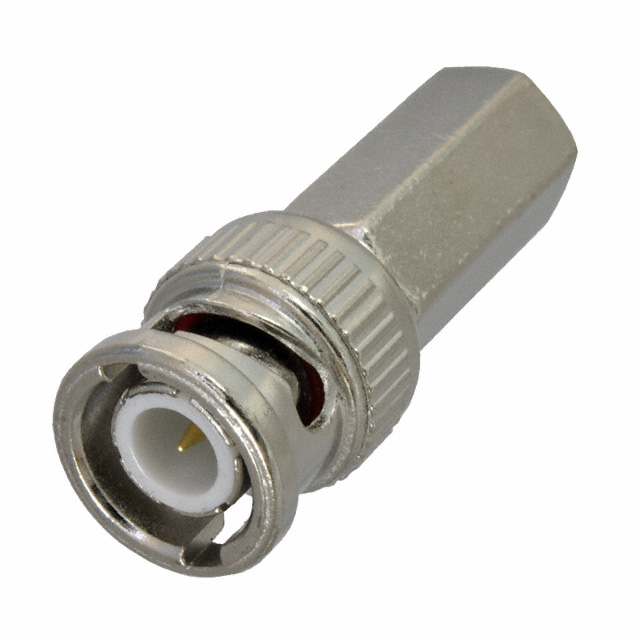

TOBNC10-58

Active

Cinch Connectivity Solutions Trompeter

CONN BNC PLUG STR 50 OHM PUSH

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN BNC PLUG STR 50 OHM PUSH

Technical Specifications

Parameters and characteristics for this part

Part	Body Material	Body Finish	Frequency - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Connector Style	Center Contact Plating	Number of Ports	Fastening Type	Dielectric Material	Housing Color	Mounting Type	Center Contact Material	Impedance	Contact Termination	Mating Cycles	Cable Group	Shield Termination	Connector Type
Cinch Connectivity Solutions Trompeter TOBNC10-58	Brass	Nickel	4 GHz	85 °C	-55 °C	BNC	Gold	1	Bayonet Lock	Polyoxymethylene (POM)	Silver	Free Hanging (In-Line)	Phosphor Bronze	50 Ohms	Push On	500	RG-58	Twist On	Male Pin Plug
Cinch Connectivity Solutions Trompeter TOBNC10-8281	Brass	Nickel				BNC	Gold	1	Bayonet Lock		Silver	Free Hanging (In-Line)			Push On		Belden 8281 RG-6	Twist On	Male Pin Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	300	$ 5.77

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Push On

Technical documentation and resources

No documents available
