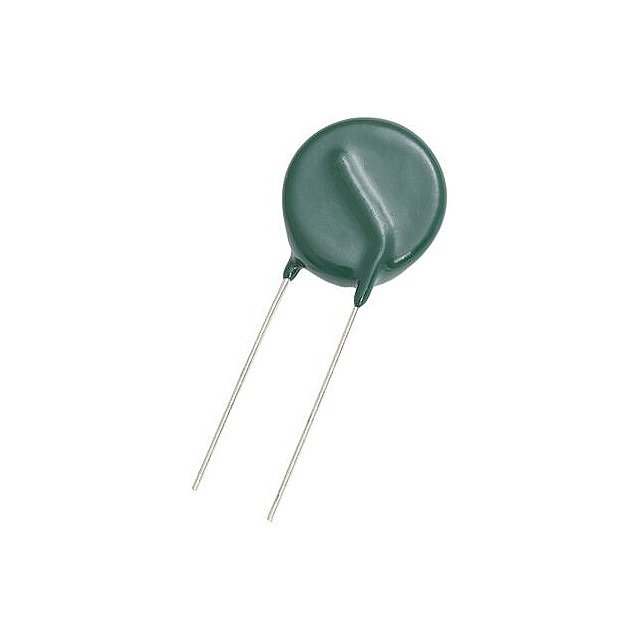

TND20V-102KB00AAA0
ActiveChemi-Con
VARISTOR 1KV 7.5KA DISC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TND20V-102KB00AAA0 |
|---|---|
| Capacitance @ Frequency | 560 pF |
| Current - Surge | 7.5 kA |
| Energy | 400 J |
| Maximum AC Volts [Max] | 625 V |
| Maximum DC Volts [Max] | 825 V |
| Mounting Type | Through Hole |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Disc |
| Varistor Voltage (Max) [Max] | 1.1 kV |
| Varistor Voltage (Min) [Min] | 900 V |
| Varistor Voltage (Typ) | 1 kV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.13 | |
| 10 | $ 1.91 | |||
| 25 | $ 1.80 | |||
| 100 | $ 1.54 | |||
| 250 | $ 1.44 | |||
| 500 | $ 1.26 | |||
| 1000 | $ 1.05 | |||
| 2500 | $ 0.97 | |||
| 5000 | $ 0.94 | |||
Description
General part information
TND20 Series
1 kV 7.5 kA Varistor 1 Circuit Through Hole Disc
