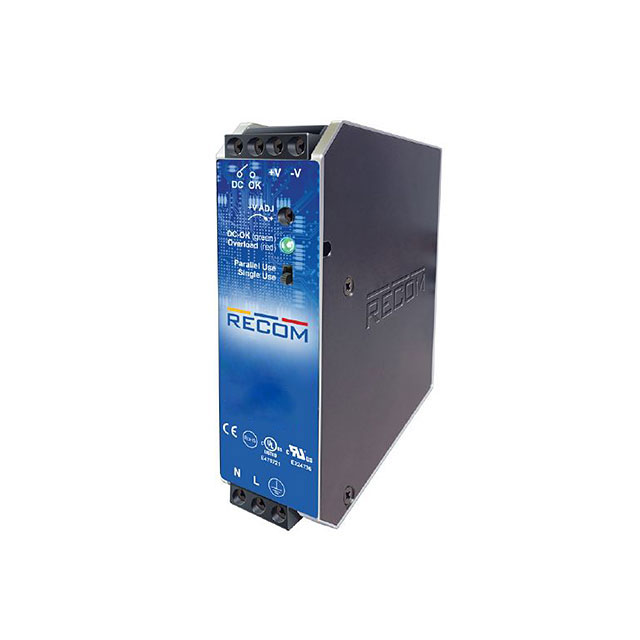

REDIN120-12

Obsolete

RECOM Power

DIN RAIL POWER SUPPLIES 120W 85-264VIN 12VOUT 8.33A

Search across all available documentation for this part.

Obsolete

RECOM Power

DIN RAIL POWER SUPPLIES 120W 85-264VIN 12VOUT 8.33A

Technical Specifications

Parameters and characteristics for this part

Specification	REDIN120-12

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial)
Approval Agency	CE, cURus
Current - Output (Max) [Max]	8.33 A
Features	PFC, Universal Input, Load Sharing, Adjustable Output, IP20
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Size / Dimension [x]	114.5 mm
Size / Dimension [x]	4.51 in
Size / Dimension [y]	1.3 in
Size / Dimension [y]	33 mm
Size / Dimension [z]	124.4 mm
Size / Dimension [z]	4.9 in
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

DIN Rail Power Supplies 120W 85-264Vin 24Vout 5A

Part	Voltage - Isolation	Voltage - Output 1	Applications	Input Type	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Features	Number of Outputs	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]
RECOM Power REDIN120-12	3000 V	12 V	ITE (Commercial)	AC	CE cURus	-25 °C	70 °C	8.33 A	Adjustable Output IP20 Load Sharing PFC Universal Input	1	85 VAC	264 VAC	1.3 in	124.4 mm	114.5 mm	4.9 in	4.51 in	33 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

DIN Rail Power Supplies 120W 85-264Vin 24Vout 5A

Technical documentation and resources
