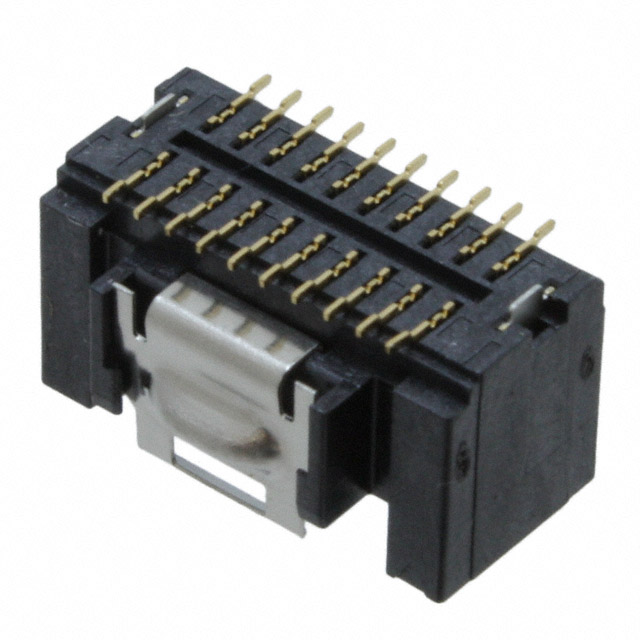

DF50-20DP-1V(51)

Active

Hirose Electric USA, Inc.

CONN HEADER SMD 20POS 1MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet DF50 Series

DF50-20DP-1V(51)

Active

Hirose Electric USA, Inc.

CONN HEADER SMD 20POS 1MM

Deep-Dive with AI

DocumentsDatasheet DF50 Series

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF50-20DP-1V(51)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	2 µin
Contact Finish Thickness - Mating	0.051 µm
Contact Finish Thickness - Post	2 µin
Contact Finish Thickness - Post	0.051 µm
Contact Material	Brass
Contact Type	Male Blade
Fastening Type	Latch Lock
Features	Solder Retention
Insulation Color	Black
Insulation Height	0.278 in
Insulation Height	7.06 mm
Insulation Material	Polyester
Mated Stacking Heights	7.35 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	100 V

DF50 Series

Part	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Contact Material	Mounting Type	Shrouding	Contact Type	Voltage Rating	Insulation Color	Termination	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Number of Rows	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Number of Positions	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Mated Stacking Heights	Features	Insulation Material	Insulation Height	Insulation Height	Wire Gauge [Max]	Wire Gauge [Min]	Pin or Socket	Contact Termination	Contact Finish	Wire Gauge
Hirose Electric USA, Inc. DF50-40DP-1V(51)	0.039 in	1 mm	Gold	Brass	Surface Mount	Shrouded - 4 Wall	Male Blade	100 V	Black	Solder	Board to Cable/Wire	2 µin	0.051 µm	All	2	Latch Lock	-35 °C	85 °C	Gold	40	Header	2 µin	0.051 µm	UL94 V-0	7.35 mm	Solder Retention	Polyester	0.278 in	7.06 mm
Hirose Electric USA, Inc. DF50-50DP-1V(52)	0.039 in	1 mm	Gold	Brass	Surface Mount	Shrouded - 4 Wall	Male Blade	100 V	Black	Solder	Board to Cable/Wire	2 µin	0.051 µm	All	2	Latch Lock	-35 °C	85 °C		50	Header			UL94 V-0	7.35 mm	Solder Retention	Polyester	0.278 in	7.06 mm
Hirose Electric USA, Inc. DF50-2830SCFA																														30 AWG	27.5 AWG	Socket	Crimp	Gold
Hirose Electric USA, Inc. DF50-20DP-1V(51)	0.039 in	1 mm	Gold	Brass	Surface Mount	Shrouded - 4 Wall	Male Blade	100 V	Black	Solder	Board to Cable/Wire	2 µin	0.051 µm	All	2	Latch Lock	-35 °C	85 °C	Gold	20	Header	2 µin	0.051 µm	UL94 V-0	7.35 mm	Solder Retention	Polyester	0.278 in	7.06 mm
Hirose Electric USA, Inc. DF50-40DP-1V(52)	0.039 in	1 mm	Gold	Brass	Surface Mount	Shrouded - 4 Wall	Male Blade	100 V	Black	Solder	Board to Cable/Wire			All	2	Latch Lock	-35 °C	85 °C		40	Header			UL94 V-0	7.35 mm	Solder Retention	Polyester	0.278 in	7.06 mm
Hirose Electric USA, Inc. DF50-40DP-1H(76)
Hirose Electric USA, Inc. DF50-50DP-1V(76)	0.039 in	1 mm	Gold	Brass	Surface Mount	Shrouded - 4 Wall	Male Blade	100 V	Natural	Solder	Board to Cable/Wire	2 µin	0.051 µm	All	2	Latch Lock	-35 °C	85 °C		50	Header			UL94 V-0	7.35 mm	Solder Retention	Polyester	0.278 in	7.06 mm
Hirose Electric USA, Inc. DF50-26SCFA																																Socket	Crimp		26 AWG
Hirose Electric USA, Inc. DF50-50DP-1V(62)	0.039 in	1 mm	Gold	Brass	Surface Mount	Shrouded - 4 Wall	Male Blade	100 V	Natural	Solder	Board to Cable/Wire	2 µin	0.051 µm	All	2	Latch Lock	-35 °C	85 °C		50	Header			UL94 V-0	7.35 mm	Solder Retention	Polyester	0.278 in	7.06 mm
Hirose Electric USA, Inc. DF50-40DP-1V(72)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.32
		10	$ 1.11
		25	$ 1.07
		50	$ 1.05
		100	$ 1.00
		250	$ 0.91
		500	$ 0.82
	Digi-Reel®	1	$ 1.32
		10	$ 1.11
		25	$ 1.07
		50	$ 1.05
		100	$ 1.00
		250	$ 0.91
		500	$ 0.82
	Tape & Reel (TR)	1000	$ 0.69
		2000	$ 0.65
		3000	$ 0.63
		5000	$ 0.61
		10000	$ 0.57

Description

General part information

DF50 Series

Connector Header Surface Mount 20 position 0.039" (1.00mm)

Documents

Technical documentation and resources

Datasheet

DF50 Series

Datasheet
