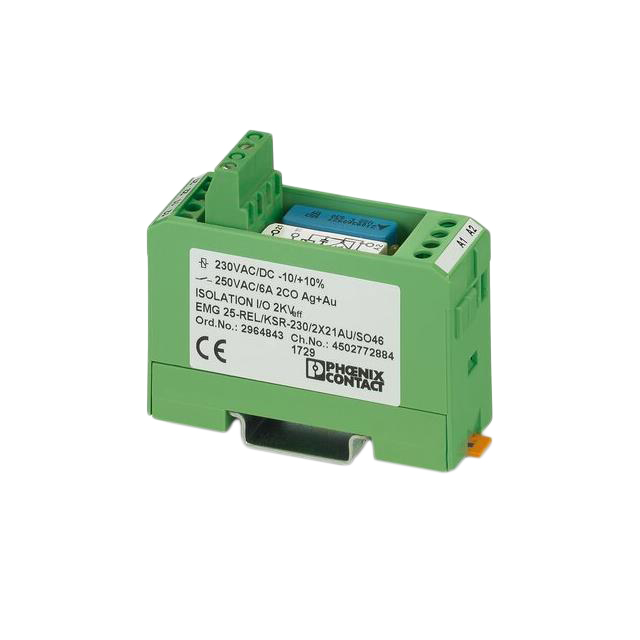

2964843
ActivePhoenix Contact
RELAY: INTERFACE; DPDT; UCOIL: 230VAC,230VDC; 0.5A; 0.5A/24VAC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2964843
ActivePhoenix Contact
RELAY: INTERFACE; DPDT; UCOIL: 230VAC,230VDC; 0.5A; 0.5A/24VAC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2964843 |
|---|---|
| Approval Agency | EAC |
| Coil Current | 18 mA |
| Coil Resistance | 12.78 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 230 VAC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver (Ag), Gold (Au) |
| Contact Rating (Current) | 0.5 A |
| Features | Varistor, Lighted Indicator |
| Mounting Type | DIN Rail |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -20 C |
| Relay Type | General Purpose |
| Release Time | 8 ms |
| Switching Voltage | 24 VDC, 24 VAC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 146.82 | |
Description
General part information
29648 Series
General Purpose Relay DPDT (2 Form C) DIN Rail
