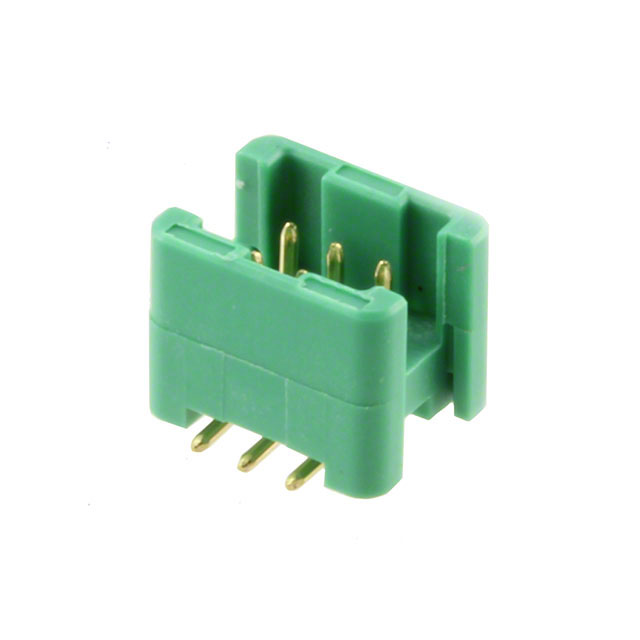

G125-MS10605L0P

Active

Harwin Inc.

3+3 POS. MALE DIL VERTICAL SMT CONN. NO LATCHES ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsG125 Spec Sheet G125-0010005 +2

G125-MS10605L0P

Active

Harwin Inc.

3+3 POS. MALE DIL VERTICAL SMT CONN. NO LATCHES ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsG125 Spec Sheet G125-0010005 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G125-MS10605L0P

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Features	Pick and Place, Solder Retention
Insulation Color	Green
Insulation Height	4.9 mm
Insulation Height	0.193 in
Insulation Material	Polyamide (PA4T), Nylon 4T, Halogen Free, Glass Filled
Mated Stacking Heights	7.35 mm, 7.45 mm, 7.8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	1.25 mm
Pitch - Mating	0.049 in
Row Spacing - Mating	0.049 in
Row Spacing - Mating	1.25 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

G125-MS1 Series

Part	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Contact Material	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Voltage Rating	Number of Rows	Contact Finish - Mating	Shrouding	Insulation Material	Connector Type	Fastening Type	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Mated Stacking Heights	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination	Style	Material Flammability Rating	Number of Positions Loaded	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Features	Mated Stacking Heights [z]	Number of Positions
Harwin Inc. G125-MS12005L1R	0.049 in	1.25 mm	Circular	Phosphor Bronze	4.9 mm	0.193 in	1.25 mm	0.049 in	Gold	450 VAC/DC	2	Gold	Shrouded - 4 Wall	Glass Filled Nylon 4T Polyamide (PA4T)	Header	Latch Lock	2 A	0.203 Ám	8 Áin	Black	7.23 mm 7.31 mm	-65 ░C	150 °C	Surface Mount	Solder	Board to Board Cable	UL94 V-0	All	20	8 µin	0.203 µm	Male Pin
Harwin Inc. G125-MS11005L2P	0.049 in	1.25 mm	Circular	Phosphor Bronze	4.9 mm	0.193 in	1.25 mm	0.049 in	Gold	450 VAC/DC	2	Gold	Shrouded - 4 Wall	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Header	Latch Lock	2 A	0.203 Ám	8 Áin	Black	7.23 mm 7.31 mm	-65 ░C	150 °C	Surface Mount	Solder	Board to Board Cable	UL94 V-0	All	10	8 µin	0.203 µm	Male Pin
Harwin Inc. G125-MS10605M1P	0.049 in	1.25 mm	Circular	Phosphor Bronze	4.9 mm	0.193 in	1.25 mm	0.049 in	Gold	450 V	2	Gold	Shrouded - 4 Wall	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Header		2 A	0.203 Ám	8 Áin	Green		-65 ░C	150 °C	Surface Mount	Solder	Board to Board Cable	UL94 V-0	All	6	8 µin	0.203 µm	Male Pin	Mating Flange Mounting Flange Pick and Place	7.3 mm 7.44 mm
Harwin Inc. G125-MS13405M1P	0.049 in	1.25 mm	Circular	Phosphor Bronze	4.9 mm	0.193 in	1.25 mm	0.049 in	Gold	450 V	2	Gold	Shrouded - 4 Wall	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Header		2 A	0.203 Ám	8 Áin	Green		-65 ░C	150 °C	Surface Mount	Solder	Board to Board Cable	UL94 V-0	All	34	8 µin	0.203 µm	Male Pin	Mating Flange Mounting Flange Pick and Place	7.3 mm 7.44 mm
Harwin Inc. G125-MS10605L2P	0.049 in	1.25 mm	Circular	Phosphor Bronze	4.9 mm	0.193 in	1.25 mm	0.049 in	Gold	450 VAC/DC	2	Gold	Shrouded - 4 Wall	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Header	Latch Lock	2 A	0.203 Ám	8 Áin	Black	7.23 mm 7.31 mm	-65 ░C	150 °C	Surface Mount	Solder	Board to Board Cable	UL94 V-0	All	6	8 µin	0.203 µm	Male Pin
Harwin Inc. G125-MS12605M2P	0.049 in	1.25 mm	Circular	Phosphor Bronze	4.9 mm	0.193 in	1.25 mm	0.049 in		450 V	2	Gold	Shrouded - 4 Wall	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Header		2 A	0.203 Ám	8 Áin	Green	7.35 mm 7.45 mm 7.8 mm	-65 ░C	150 °C	Surface Mount	Solder	Board to Board Cable	UL94 V-0	All	26			Male Pin	Mating Flange Mounting Flange Pick and Place
Harwin Inc. G125-MS11605M1P	0.049 in	1.25 mm	Circular	Phosphor Bronze	4.9 mm	0.193 in	1.25 mm	0.049 in	Gold	450 V	2	Gold	Shrouded - 4 Wall	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Header		2 A	0.203 Ám	8 Áin	Green		-65 ░C	150 °C	Surface Mount	Solder	Board to Board Cable	UL94 V-0	All		8 µin	0.203 µm	Male Pin	Mating Flange Mounting Flange Pick and Place	7.3 mm 7.44 mm	16
Harwin Inc. G125-MS11605L0P	0.049 in	1.25 mm	Circular	Phosphor Bronze	4.9 mm	0.193 in	1.25 mm	0.049 in			2	Gold	Shrouded - 4 Wall	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Header	Push-Pull	2 A	0.203 Ám	8 Áin	Green	7.35 mm 7.45 mm 7.8 mm	-65 ░C	150 °C	Surface Mount	Solder	Board to Board Cable	UL94 V-0	All				Male Pin	Pick and Place Solder Retention		16
Harwin Inc. G125-MS15005M2P	0.049 in	1.25 mm	Circular	Phosphor Bronze	4.9 mm	0.193 in	1.25 mm	0.049 in		450 V	2	Gold	Shrouded - 4 Wall	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Header		2 A	0.203 Ám	8 Áin	Green	7.35 mm 7.45 mm 7.8 mm	-65 ░C	150 °C	Surface Mount	Solder	Board to Board Cable	UL94 V-0	All	50			Male Pin	Mating Flange Mounting Flange Pick and Place
Harwin Inc. G125-MS10605L0P	0.049 in	1.25 mm	Circular	Phosphor Bronze	4.9 mm	0.193 in	1.25 mm	0.049 in			2	Gold	Shrouded - 4 Wall	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Header	Push-Pull	2 A	0.203 Ám	8 Áin	Green	7.35 mm 7.45 mm 7.8 mm	-65 ░C	150 °C	Surface Mount	Solder	Board to Board Cable	UL94 V-0	All	6			Male Pin	Pick and Place Solder Retention
