902-0137-000

Active

ROBOTIS

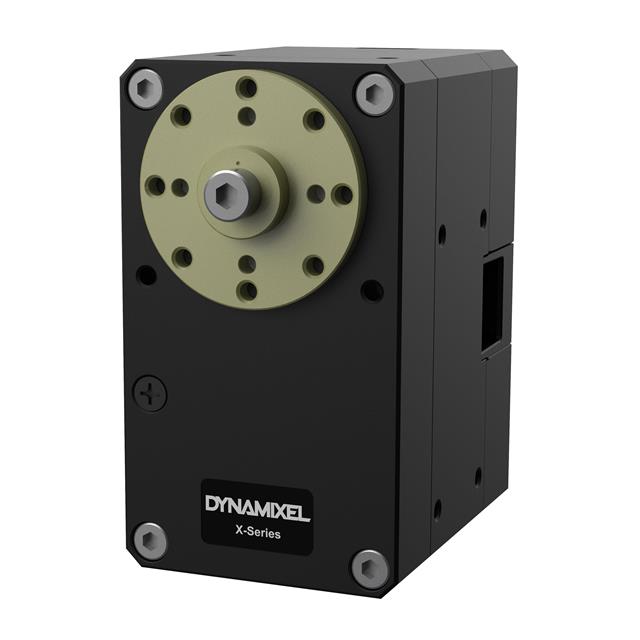

XM540-W270-T DYNAMIXEL SERVO

Search across all available documentation for this part.

Active

ROBOTIS

XM540-W270-T DYNAMIXEL SERVO

Technical Specifications

Parameters and characteristics for this part

Specification	902-0137-000

Encoder Type	Absolute
Features	Integrated Controller
Function	Servomotor
Gear Reduction Ratio	272.5
Motor Type	Brushed
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-5 °C
RPM	30 RPM
Size / Dimension [x]	1.417 "
Size / Dimension [x]	36 mm
Size / Dimension [y]	0.944 "
Size / Dimension [y]	24 mm
Termination Style	Connector
Torque - Max Momentary (oz-in / mNm)	1501.4 oz-in
Torque - Max Momentary (oz-in / mNm)	10600 mNm
Type	DC Motor
Voltage - Rated	12 VDC

Part	Type	Gear Reduction Ratio	RPM	Encoder Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Torque - Max Momentary (oz-in / mNm)	Torque - Max Momentary (oz-in / mNm)	Voltage - Rated	Function	Termination Style	Motor Type
ROBOTIS 902-0137-000	DC Motor	272.5	30 RPM	Absolute	1.417 "	36 mm	0.944 "	24 mm	80 C	-5 °C	Integrated Controller	1501.4 oz-in	10600 mNm	12 VDC	Servomotor	Connector	Brushed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 419.90

General part information

Brushed DC Motor Servomotor 30 RPM Absolute 12VDC

Technical documentation and resources

No documents available
