829-22-007-20-001101

Active

Mill-Max Manufacturing Corp.

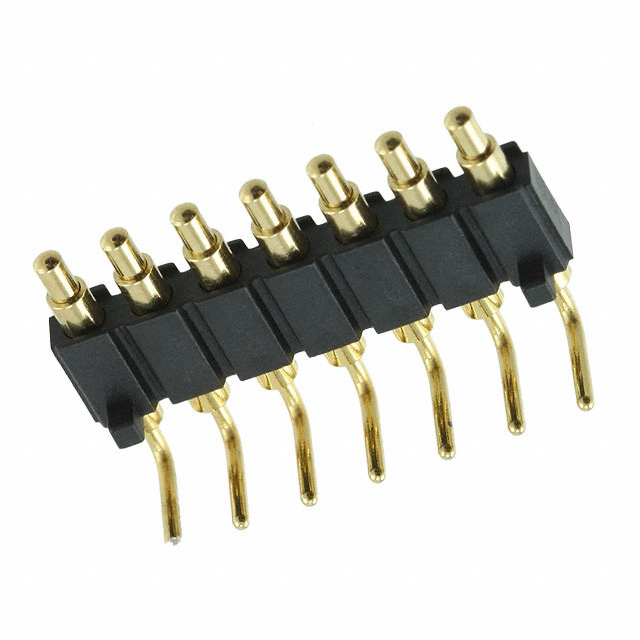

CONN SPRING PISTON 7POS R/A PCB

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN SPRING PISTON 7POS R/A PCB

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Material	Connector Type	Number of Rows	Mounting Type	Contact Finish	Number of Contacts	Number of Contacts [custom]
Mill-Max Manufacturing Corp. 829-22-017-20-001101	0.51 µm	20 µin	2.54 mm	0.1 in	Copper Alloy	Piston	1	Through Hole Right Angle	Gold	17
Mill-Max Manufacturing Corp. 829-22-012-20-001101	0.51 µm	20 µin	2.54 mm	0.1 in	Copper Alloy	Piston	1	Through Hole Right Angle	Gold	12
Mill-Max Manufacturing Corp. 829-22-006-20-002101	0.51 µm	20 µin	2.54 mm	0.1 in	Copper Alloy	Piston	1	Through Hole Right Angle	Gold		6
Mill-Max Manufacturing Corp. 829-22-007-20-001101	0.51 µm	20 µin	2.54 mm	0.1 in	Copper Alloy	Piston	1	Through Hole Right Angle	Gold	7
Mill-Max Manufacturing Corp. 829-22-010-20-001101	0.51 µm	20 µin	2.54 mm	0.1 in	Copper Alloy	Piston	1	Through Hole Right Angle	Gold	10
Mill-Max Manufacturing Corp. 829-22-018-20-001101	0.51 µm	20 µin	2.54 mm	0.1 in	Copper Alloy	Piston	1	Through Hole Right Angle	Gold
Mill-Max Manufacturing Corp. 829-22-003-20-002101	0.51 µm	20 µin	2.54 mm	0.1 in	Copper Alloy	Piston	1	Through Hole Right Angle	Gold	3
Mill-Max Manufacturing Corp. 829-22-015-20-001101	0.51 µm	20 µin	2.54 mm	0.1 in	Copper Alloy	Piston	1	Through Hole Right Angle	Gold	15
Mill-Max Manufacturing Corp. 829-22-013-20-002101	0.51 µm	20 µin	2.54 mm	0.1 in	Copper Alloy	Piston	1	Through Hole Right Angle	Gold	13
Mill-Max Manufacturing Corp. 829-22-010-20-002101	0.51 µm	20 µin	2.54 mm	0.1 in	Copper Alloy	Piston	1	Through Hole Right Angle	Gold	10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Spring Piston Connector Through Hole, Right Angle
