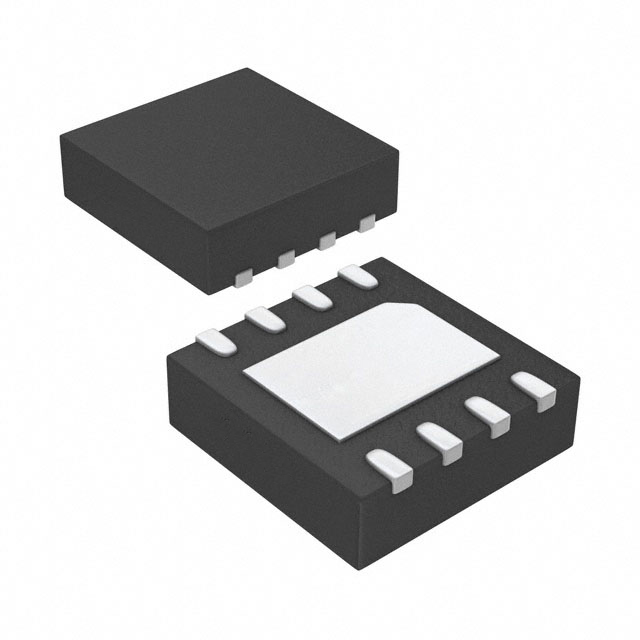

RTQ2569-80GQW-QA
ActiveRichtek USA Inc.
IC REG LIN 8V 100MA WDFN-8
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RTQ2569-80GQW-QA
ActiveRichtek USA Inc.
IC REG LIN 8V 100MA WDFN-8
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RTQ2569-80GQW-QA |
|---|---|
| Control Features | Enable |
| Current - Output | 200 mA |
| Current - Quiescent (Iq) | 5 µA |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | 8-WFDFN Exposed Pad |
| Protection Features | Over Temperature, Over Current, Short Circuit |
| Qualification | AEC-Q100 |
| Supplier Device Package | 8-WDFN-EL, 3x3 |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Output (Min/Fixed) | 8 V |
| Voltage Dropout (Max) [Max] | 0.36 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.93 | |
| 10 | $ 1.23 | |||
| 25 | $ 1.05 | |||
| 100 | $ 0.84 | |||
| 250 | $ 0.74 | |||
| 500 | $ 0.67 | |||
| Digi-Reel® | 1 | $ 1.93 | ||
| 10 | $ 1.23 | |||
| 25 | $ 1.05 | |||
| 100 | $ 0.84 | |||
| 250 | $ 0.74 | |||
| 500 | $ 0.67 | |||
| Tape & Reel (TR) | 1500 | $ 0.40 | ||
| 3000 | $ 0.37 | |||
| 4500 | $ 0.36 | |||
| 7500 | $ 0.34 | |||
| 10500 | $ 0.33 | |||
| 15000 | $ 0.32 | |||
Description
General part information
RTQ2569 Series
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA 8-WDFN-EL (3x3)
