19200101730

Active

HARTING Technology Group

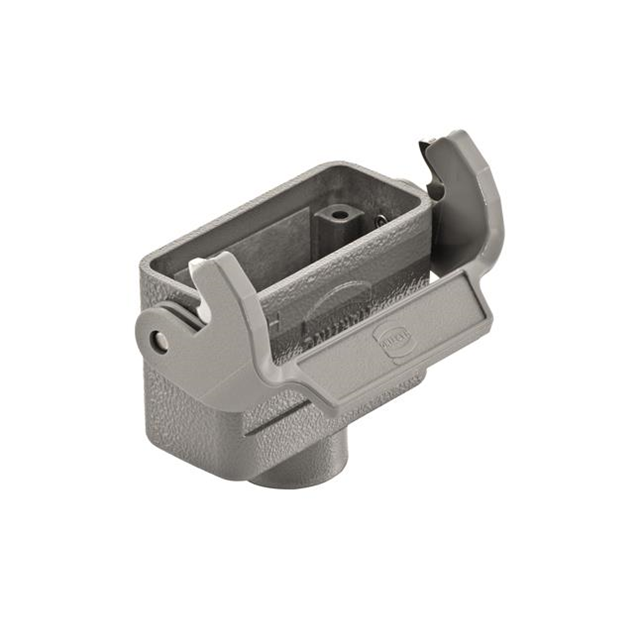

10A HOOD CABLE TO CABLE, SINGLE LEVER, LOW CONSTRUCTION, M20

Search across all available documentation for this part.

Active

HARTING Technology Group

10A HOOD CABLE TO CABLE, SINGLE LEVER, LOW CONSTRUCTION, M20

Technical Specifications

Parameters and characteristics for this part

Specification	19200101730

Connector Type	Hood - Coupling
Features	Cable to Cable
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10 A
Size / Dimension [x]	2.469 "
Size / Dimension [x]	62.7 mm
Size / Dimension [y]	1.161 "
Size / Dimension [y]	29.5 mm
Size / Dimension [z]	53.5 mm
Size / Dimension [z]	2.106 "
Style	Top Entry
Thread Size	M20

Part	Operating Temperature [Max]	Operating Temperature [Min]	Features	Connector Type	Housing Color	Style	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Lock Location	Housing Finish	Thread Size	Ingress Protection	Housing Material	Size
HARTING Technology Group 19200101730	125 °C	-40 °C	Cable to Cable	Hood - Coupling	Gray	Top Entry	1.161 "	53.5 mm	2.469 "	2.106 "	62.7 mm	29.5 mm	Locking Clip (1) on Base Bottom	Powder Coated	M20	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood - Coupling Connector Top Entry M20 10A IP65 - Dust Tight, Water Resistant
