2HX-750-2-BK-3

Active

BRADY

SLEEVE, 0.75 IN DIA X 0.67 IN W

Search across all available documentation for this part.

Active

BRADY

SLEEVE, 0.75 IN DIA X 0.67 IN W

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Material	Label Size [y]	Label Size [Min]	Label Size [Max]	Label Size [x]	Label Type	Color	Label Size [diameter]	Label Size [y]	Label Size [x]	Label Size [Max] [diameter]	Label Size [Max] [diameter]	Label Size [Min] [diameter]	Label Size [Min] [diameter]	Label Size [Max]	Label Size [Min]
BRADY 2HX-750-2.3-YL	135 °C	-55 °C	Polyolefin (PO)	1.25 " 31.8 mm	0.38 in 9.5 mm	0.7 in 17.8 mm	50.8 mm	Heat Shrinkable	Yellow
BRADY 2HX-750-2-BK-3	120 °C	-40 °C	Polyolefin (PO)	31.8 mm			17 mm	Heat Shrinkable	Black	0.38 in 0.7 in 9.5 mm 17.8 mm	1.25 "	0.67 in
BRADY 2HX-750-2-WT-J-3	120 °C	-40 °C	Polyolefin (PO)	31.8 mm			17 mm	Heat Shrinkable	White	0.38 in 0.7 in 9.5 mm 17.8 mm	1.25 "	0.67 in
BRADY 2HX-750-2-BK-4	120 °C	-40 °C	Polyolefin (PO)	1.25 "			12.7 mm	Heat Shrinkable	Black		31.8 mm	0.5 "	17.8 mm	0.7 "	9.5 mm	0.38 "
BRADY 2HX-750-2-WT-4	120 °C	-40 °C	Polyolefin (PO)	1.25 "			12.7 mm	Heat Shrinkable	White		31.8 mm	0.5 "	17.8 mm	0.7 "	9.5 mm	0.38 "
BRADY 2HX-750-2-WT-SC	120 °C	-40 °C	Polyolefin (PO)	1.25 " 31.8 mm	0.38 in 9.5 mm	0.7 in 17.8 mm	50.8 mm	Heat Shrinkable	White
BRADY 2HX-750-2-WT-2
BRADY 2HX-750-2.3-WT-2	135 °C	-55 °C	Polyolefin (PO)	31.8 mm	9.5 mm	17.8 mm	25.4 mm	Heat Shrinkable	White		1.25 "	1 in					0.7 "	0.38 "
BRADY 2HX-750-2-YL-J-2	120 °C	-40 °C	Polyolefin (PO)	31.8 mm	9.5 mm	17.8 mm	25.4 mm	Heat Shrinkable	Yellow		1.25 "	1 in					0.7 "	0.38 "
BRADY 2HX-750-2-WT-3	120 °C	-40 °C	Polyolefin (PO)	31.8 mm			17 mm	Heat Shrinkable	White	0.38 in 0.7 in 9.5 mm 17.8 mm	1.25 "	0.67 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 574.93

General part information

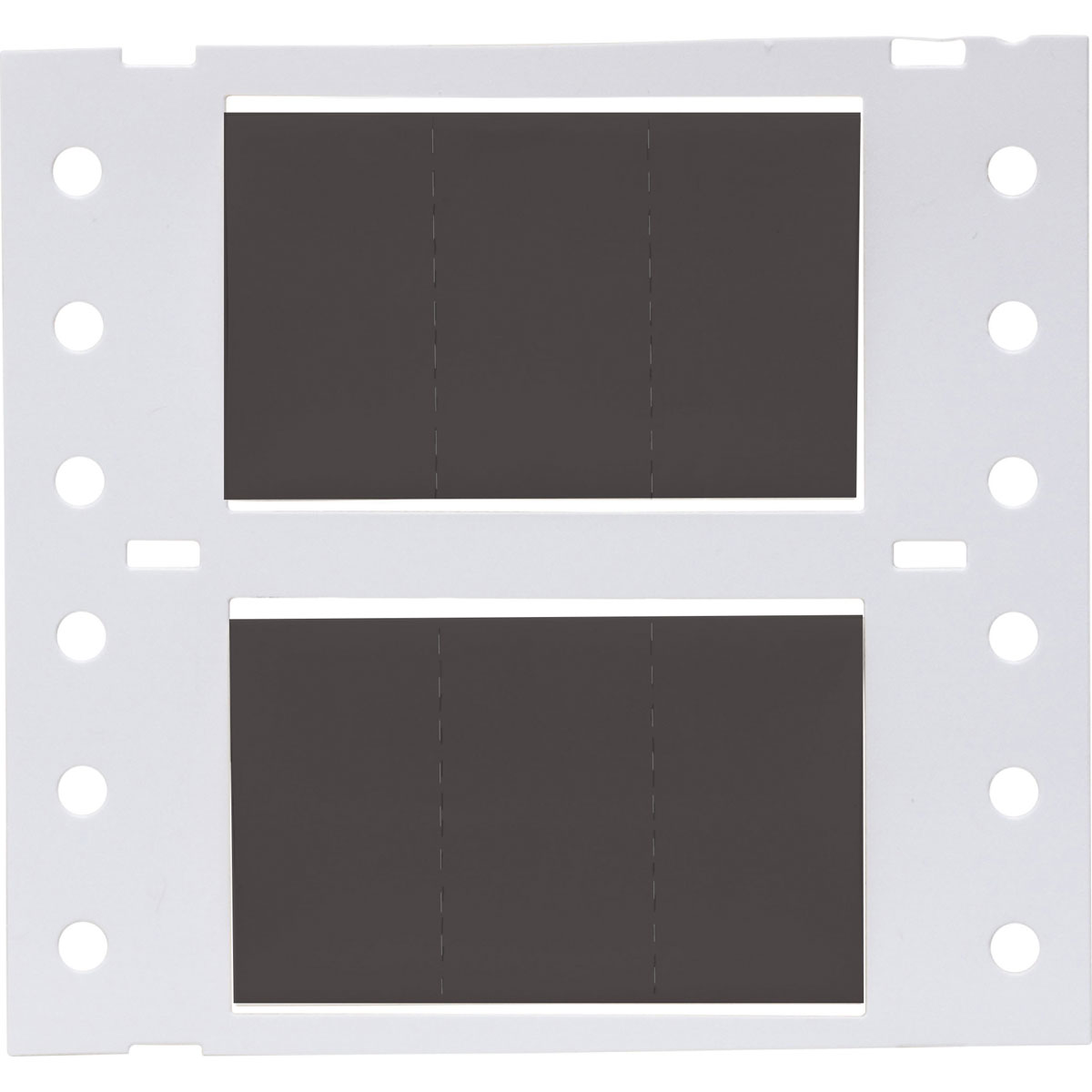

Black Heat Shrinkable Label 0.67" W x 1.25" H (17.0mm x 31.8mm); Cable O.D. 0.38" ~ 0.70" (9.5mm ~ 17.8mm)
