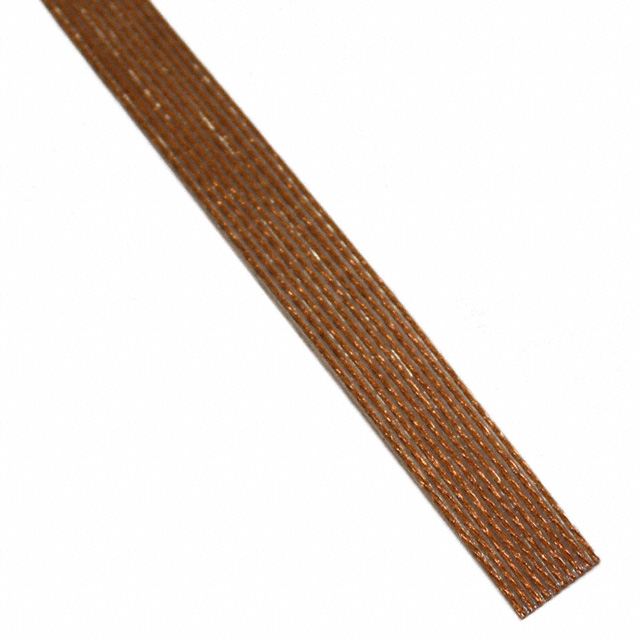

666K101-10

Unknown

Cicoil

CBL RIBN 10COND 0.039 CLEAR 250'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

666K101-10

Unknown

Cicoil

CBL RIBN 10COND 0.039 CLEAR 250'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	666K101-10

Cable Type	Flat Cable
Conductor Material	Copper, Bare
Current Rating (Amps)	5 A
Insulation Resistance	200 MOhm
Jacket (Insulation) Material	Flexx-Sil™
Jacket Color	Clear
Length	15.24 m, 152.4 m, 76.2 m, 7.62 m
Length	50 ft, 6000 in, 3000 ", 25 ft
Length [x]	100 ft
Length [x]	30.48 m
Number of Conductors	10
Operating Temperature [Max]	260 ░C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Ratings	CE, UL E324413
Ribbon Thickness	0.89 mm
Ribbon Thickness	0.035 in
Ribbon Width [custom]	10 mm
Ribbon Width [custom]	0.394 in
Shielding	Unshielded
Voltage	450 V
Wire Gauge	28 AWG

666K101 Series

Part	Insulation Resistance	Current Rating (Amps)	Cable Type	Jacket Color	Voltage	Length [x]	Length [x]	Shielding	Ribbon Thickness	Ribbon Thickness	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Ribbon Width [custom]	Ribbon Width [custom]	Pitch [x]	Pitch [x]	Number of Conductors	Wire Gauge	Jacket (Insulation) Material	Ratings	Ribbon Width [y]	Ribbon Width [y]	Ribbon Width	Ribbon Width	Ribbon Width [x]	Ribbon Width [x]	Ribbon Width
Cicoil 666K101-10	200 MOhm	5 A	Flat Cable	Clear	450 V	100 ft	30.48 m	Unshielded	0.89 mm	0.035 in	7.62 m 15.24 m 76.2 m 152.4 m	25 ft 50 ft 3000 " 6000 in	-65 ░C	260 ░C	Copper Bare	10 mm	0.394 in	0.039 in	1 mm	10	28 AWG	Flexx-Sil™	CE UL E324413
Cicoil 666K101-34-050	200 MOhm	5 A	Flat Cable	Clear	450 V			Unshielded	0.89 mm	0.035 in	15.24 m	50 ft	-65 ░C	260 ░C	Copper Bare			0.039 in	1 mm	34	28 AWG	Flexx-Sil™	CE UL E324413	1.339 "	34 mm
Cicoil 666K101-44-050	200 MOhm	5 A	Flat Cable	Clear	450 V			Unshielded	0.89 mm	0.035 in	15.24 m	50 ft	-65 ░C	260 ░C	Copper Bare	43.99 mm	1.732 in	0.039 in	1 mm	44	28 AWG	Flexx-Sil™	CE UL E324413
Cicoil 666K101-20	200 MOhm	5 A	Flat Cable	Clear	450 V			Unshielded	0.89 mm	0.035 in	15.24 m 304.8 m	50 ft 1000 ft	-65 ░C	260 ░C	Copper Bare			0.039 in	1 mm	20	28 AWG	Flexx-Sil™	CE UL E324413			0.787 in	20 mm
Cicoil 666K101-50-050	200 MOhm	5 A	Flat Cable	Clear	450 V			Unshielded	0.89 mm	0.035 in	15.24 m	50 ft	-65 ░C	260 ░C	Copper Bare			0.039 in	1 mm	50	28 AWG	Flexx-Sil™	CE UL E324413					1.969 in	50.01 mm
Cicoil 666K101-26	200 MOhm	5 A	Flat Cable	Clear	450 V	100 ft	30.48 m	Unshielded	0.89 mm	0.035 in	15.24 m 152.4 m	50 ft 6000 in	-65 ░C	260 ░C	Copper Bare			0.039 in	1 mm	26	28 AWG	Flexx-Sil™	CE UL E324413			1.024 in	26.01 mm
Cicoil 666K101-40-050	200 MOhm	5 A	Flat Cable	Clear	450 V			Unshielded	0.89 mm	0.035 in	15.24 m	50 ft	-65 ░C	260 ░C	Copper Bare			0.039 in	1 mm	40	28 AWG	Flexx-Sil™	CE UL E324413			1.575 in	40 mm
Cicoil 666K101-16	200 MOhm	5 A	Flat Cable	Clear	450 V	100 ft	30.48 m	Unshielded	0.89 mm	0.035 in	15.24 m 152.4 m 304.8 m	50 ft 1000 ft 6000 in	-65 ░C	260 ░C	Copper Bare			0.039 in	1 mm	16	28 AWG	Flexx-Sil™	CE UL E324413	0.63 in	16 mm
Cicoil 666K101-30-050	200 MOhm	5 A	Flat Cable	Clear	450 V			Unshielded	0.89 mm	0.035 in	15.24 m	50 ft	-65 ░C	260 ░C	Copper Bare			0.039 in	1 mm	30	28 AWG	Flexx-Sil™	CE UL E324413				1.181 in			30 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

666K101 Series

Flat Ribbon Cable Clear 10 Conductors 0.039" (1.00mm) Flat Cable 250.0' (76.20m)
