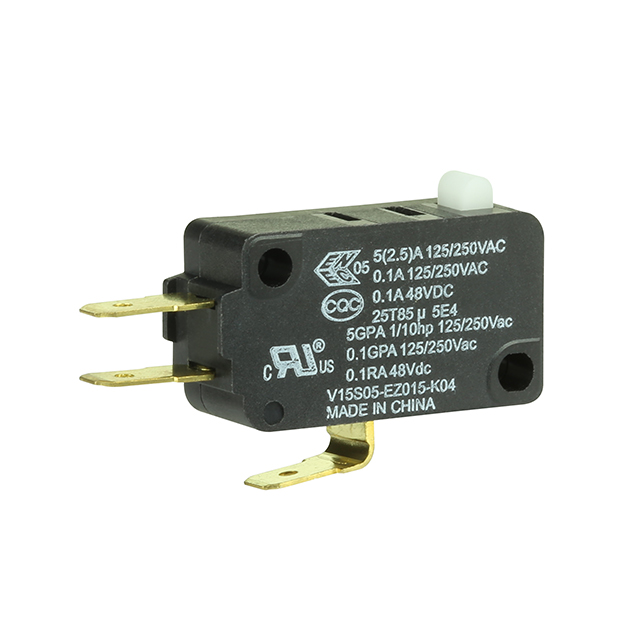

V15S05-EZ015-K04

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Switch Function	Circuit	Mounting Type	Voltage Rating - AC	Voltage Rating - DC	Operating Force	Operating Temperature [Min]	Operating Temperature [Max]	Operating Position	Operating Position	Actuator Type	Mechanical Life	Pretravel	Pretravel	Overtravel	Overtravel	Current Rating (Amps)	Release Force	Termination Style	Differential Travel	Differential Travel	Electrical Life
Honeywell Sensing and Productivity Solutions V15S05-EZ015-K04	On-Mom	SPDT	Chassis Mount	125 V	48 V	16 gf	-25 °C	85 °C	0.579 in	14.7 mm	Round (Pin Plunger)	1000000 Cycles	1.5 mm	0.06 in	0.76 mm	0.03 in	5 A 100 mA	3 gf	Quick Connect - 0.250" (6.3mm)	0.013 in	0.33 mm
Honeywell Sensing and Productivity Solutions V15S05-1EZ050-K01	On-Mom	SPDT	Chassis Mount	125 V	48 V	50 gf	-25 °C	85 °C	0.579 in	14.7 mm	Round (Pin Plunger)	1000000 Cycles	1.5 mm	0.06 in	0.76 mm	0.03 in	5 A 100 mA		Quick Connect - 0.187" (4.7mm)	0.02 in	0.5 mm
Honeywell Sensing and Productivity Solutions V15S05-CZ050A06	On-Mom	SPDT	Chassis Mount	125 V	48 V	35 gf	-25 °C	85 °C	0.81 in	20.57 mm	Lever Roller	1000000 Cycles	1.5 mm	0.06 in	1.27 mm	0.05 in	5 A 100 mA		Quick Connect - 0.250" (6.3mm)	0.05 in	1.27 mm	10000 Cycles
Honeywell Sensing and Productivity Solutions V15S05-CZ100A05-01	On-Mom	SPDT	Chassis Mount	125 V	48 V		-25 °C	85 °C			Lever Roller	1000000 Cycles					5 A 100 mA		Quick Connect - 0.250" (6.3mm)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Chassis Mount
