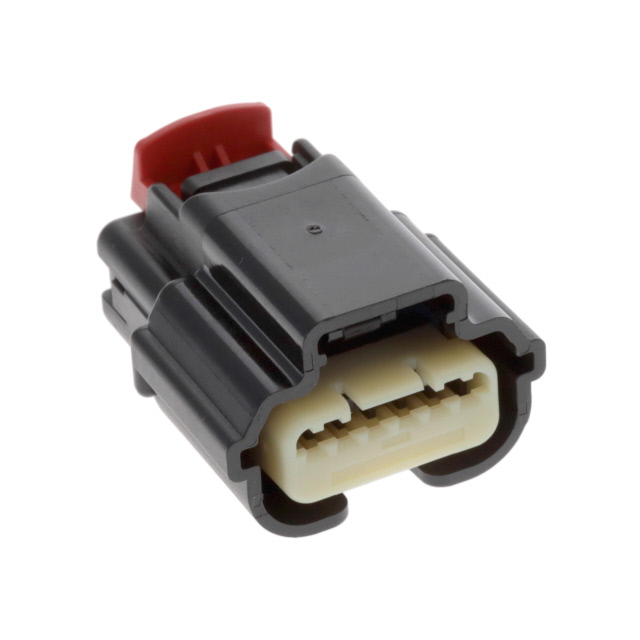

0314049572

Active

Molex

CONN RCPT HSG 8POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

0314049572

Active

Molex

CONN RCPT HSG 8POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0314049572

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Features	Connector Position Assurance (CPA)
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in

031404 Series

Part	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Color	Number of Positions	Contact Termination	Insulation Material	Mounting Type	Connector Type	Fastening Type	Pitch [x]	Pitch [x]	Number of Rows	Features
Molex 0314049593	Female Socket	125 °C	-40 °C	Black	8	Crimp	Polybutylene Terephthalate (PBT) Glass Filled	Free Hanging (In-Line)	Receptacle	Latch Holder	2.54 mm	0.1 in	1	Connector Position Assurance (CPA) Sealed
Molex 0314043710
Molex 0314049572	Female Socket	125 °C	-40 °C	Black	8	Crimp	Polybutylene Terephthalate (PBT) Glass Filled	Free Hanging (In-Line)	Receptacle	Latch Holder	2.54 mm	0.1 in	1	Connector Position Assurance (CPA)
Molex 0314046110
Molex 0314049153	Female Socket	125 °C	-40 °C	Black	8	Crimp	Polybutylene Terephthalate (PBT) Glass Filled	Free Hanging (In-Line)	Receptacle	Latch Holder	2.54 mm	0.1 in	1	Connector Position Assurance (CPA) Sealed
Molex 0314047814	Female Socket	125 °C	-40 °C	Natural	6	Crimp	Polyamide (PA66) Nylon 6/6 Glass Filled Syndiotatic Polystyrene (SPS)	Free Hanging (In-Line)	Receptacle	Latch Holder	2.54 mm	0.1 in	1	Connector Position Assurance (CPA) Sealed
Molex 0314049134	Female Socket	125 °C	-40 °C	Black	8	Crimp	Polybutylene Terephthalate (PBT) Glass Filled	Free Hanging (In-Line)	Receptacle	Latch Holder	2.54 mm	0.1 in	1	Connector Position Assurance (CPA) Sealed
Molex 0314047812	Female Socket	125 °C	-40 °C	Natural	6	Crimp	Polyamide (PA66) Nylon 6/6 Glass Filled Syndiotatic Polystyrene (SPS)	Free Hanging (In-Line)	Receptacle	Latch Holder	2.54 mm	0.1 in	1	Connector Position Assurance (CPA) Sealed
Molex 0314049118	Female Socket	125 °C	-40 °C	Black	8	Crimp	Polybutylene Terephthalate (PBT) Glass Filled	Free Hanging (In-Line)	Receptacle	Latch Holder	2.54 mm	0.1 in	1	Connector Position Assurance (CPA) Sealed
Molex 0314049173	Female Socket	125 °C	-40 °C	Black	8	Crimp	Polybutylene Terephthalate (PBT) Glass Filled	Free Hanging (In-Line)	Receptacle	Latch Holder	2.54 mm	0.1 in	1	Connector Position Assurance (CPA) Sealed

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 1.40
		10	$ 1.06
		25	$ 0.96
		50	$ 0.89
		100	$ 0.83
		250	$ 0.83

Description

General part information

031404 Series

8 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
