EV9720

Active

CML Micro

CMX972 EVALUATION KIT

Search across all available documentation for this part.

Active

CML Micro

CMX972 EVALUATION KIT

Technical Specifications

Parameters and characteristics for this part

Specification	EV9720

For Use With/Related Products	CMX972
Frequency [Max]	300 MHz
Frequency [Min]	20 MHz
Supplied Contents	Board(s)

Part	For Use With/Related Products	Supplied Contents	Frequency [Max]	Frequency [Min]	Function	Current - Supply	P1dB	Mounting Type	Noise Figure	Voltage - Supply [Max]	Voltage - Supply [Min]	Gain	Package / Case	RF Frequency [Min]	RF Frequency [Max]	Supplier Device Package
CML Micro EV9720	CMX972	Board(s)	300 MHz	20 MHz
CML Micro CMX972Q5					Demodulator	3 mA	-41 dBm	Surface Mount	10 dB	3.6 V	3 V	56 dB	32-VFQFN Exposed Pad	20 MHz	300 MHz	32-VQFN (5x5)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 122.48

General part information

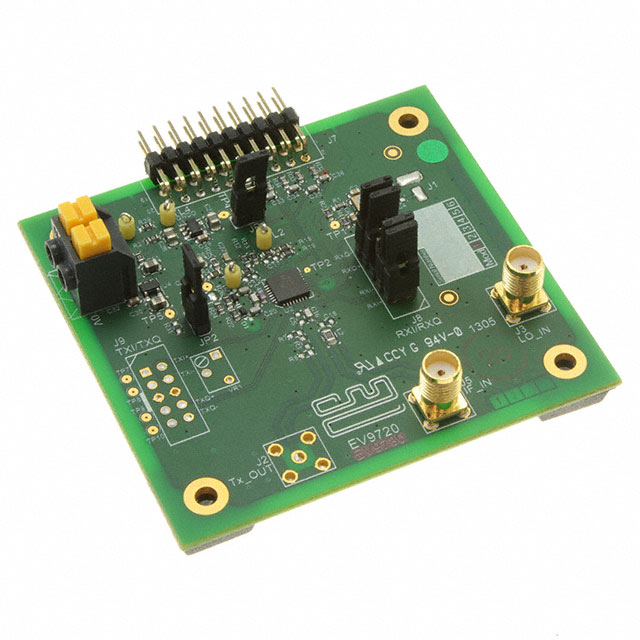

CMX972 - Demodulator 20MHz ~ 300MHz Evaluation Board

Technical documentation and resources
