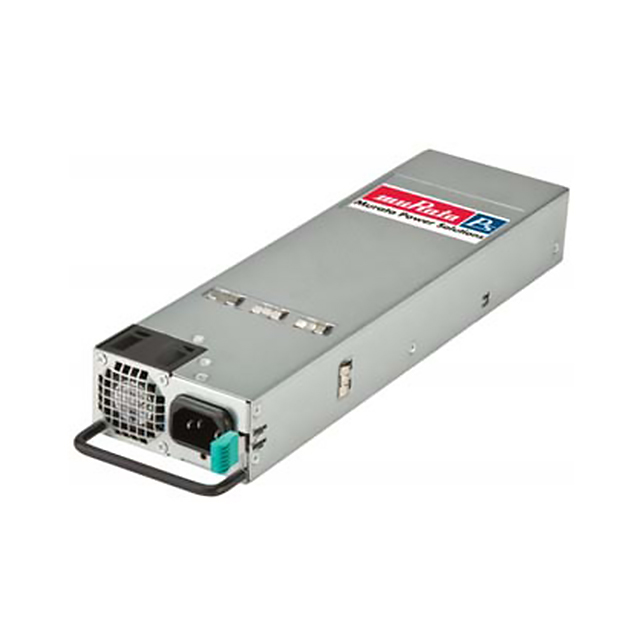

D1U3CS-W-1200-12-HA4C

Obsolete

Murata Power Solutions Inc.

AC/DC CONVERTER 12V 1200W

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

AC/DC CONVERTER 12V 1200W

Technical Specifications

Parameters and characteristics for this part

Specification	D1U3CS-W-1200-12-HA4C

Applications	ITE (Commercial)
Approval Agency	CB, TUV, CE, cCSAus
Current - Output 1	98.3 A
Efficiency	92 %
Features	I2C Interface, Remote Sense, Hot Swappable, Load Sharing, PMBus™, PFC, Universal Input, Standby Output
Mounting Type	Rack Mount
Number of Outputs	1
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Power (Watts)	1200 W
Size / Dimension [x]	279.4 mm
Size / Dimension [x]	11 in
Size / Dimension [y]	81.3 mm
Size / Dimension [y]	3.2 in
Size / Dimension [z]	1.57 "
Size / Dimension [z]	39.9 mm
Type	Front End
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Current - Output 1	Voltage - Isolation	Efficiency	Type	Voltage - Output 1	Approval Agency	Features	Applications	Number of Outputs	Mounting Type	Power (Watts)	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]
Murata Power Solutions Inc. D1U3CS-W-1200-12-HA4C	98.3 A	3000 V	92 %	Front End	12 V	CB cCSAus CE TUV	Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output Universal Input	ITE (Commercial)	1	Rack Mount	1200 W	90 VAC	264 VAC	1.57 "	81.3 mm	279.4 mm	39.9 mm	11 in	3.2 in	-10 °C	50 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Front End AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
