GP1500-0.080-02-0816

Active

Bergquist - Henkel

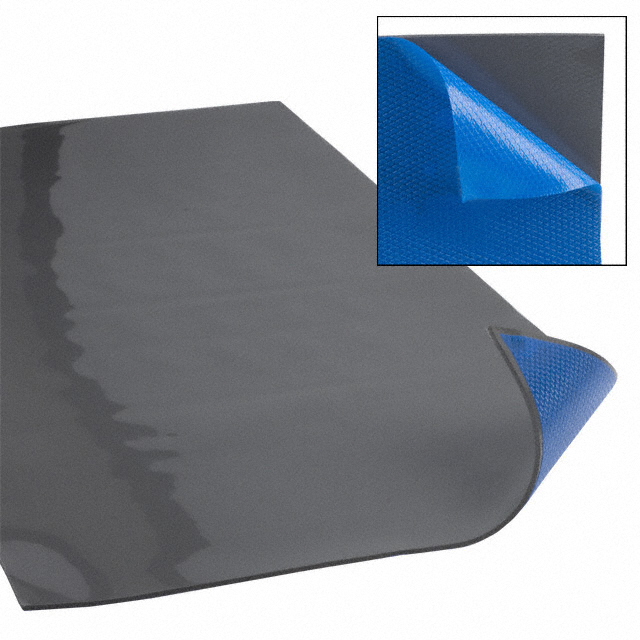

THERM PAD 406.4X203.2MM BLACK

Search across all available documentation for this part.

Active

Bergquist - Henkel

THERM PAD 406.4X203.2MM BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	GP1500-0.080-02-0816

Adhesive	Tacky - Both Sides
Color	Black
Outline [x]	406.4 mm
Outline [y]	203.2 mm
Shape	Rectangular
Shelf Life	6 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	95 °F
Storage/Refrigeration Temperature [Max]	35 °C
Thermal Conductivity	1.5 W/m-K
Thickness	80 mils
Thickness	0.08 "

Part	Shelf Life Start	Shape	Outline [x]	Outline [y]	Thermal Conductivity	Thickness	Thickness	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Max]	Adhesive	Shelf Life	Color	Backing, Carrier	Type	Thickness [custom]	Thickness [custom]
Bergquist - Henkel GP1500-0.080-02-0816	Date of Manufacture	Rectangular	406.4 mm	203.2 mm	1.5 W/m-K	80 mils	0.08 "	95 °F	35 °C	Tacky - Both Sides	6 Months	Black
Bergquist - Henkel GP1500R-0.015-02-0816	Date of Manufacture	Rectangular	406.4 mm	203.2 mm	1.5 W/m-K	0.381 mm	0.015 in	95 °F	35 °C	Tacky - Both Sides	12 Months	Black	Fiberglass
Bergquist - Henkel GP1500-0.040-02-0816	Date of Manufacture	Rectangular	406.4 mm	203.2 mm	1.5 W/m-K	1.016 mm	0.04 in	95 °F	35 °C	Tacky - Both Sides	6 Months	Black
Bergquist - Henkel GP1500-0.080-02-0404	Date of Manufacture	Square	101.6 mm	101.6 mm	1.5 W/m-K	80 mils	0.08 "	95 °F	35 °C	Tacky - Both Sides	6 Months	Black
Bergquist - Henkel GP1500-0.125-02-15MMX15MM	Date of Manufacture	Square	15 mm	15 mm	1.5 W/m-K	3.18 mm	0.125 in			Tacky - Both Sides	6 Months	Black		Gap Filler Pad Sheet
Bergquist - Henkel GP1500R-0.010-02-0816	Date of Manufacture	Rectangular	406.4 mm	203.2 mm	1.5 W/m-K			95 °F	35 °C	Tacky - Both Sides	12 Months	Black	Fiberglass		0.254 mm	0.01 in
Bergquist - Henkel GP1500-0.125-02-0816	Date of Manufacture	Rectangular	406.4 mm	203.2 mm	1.5 W/m-K	3.18 mm	0.125 in	95 °F	35 °C	Tacky - Both Sides	6 Months	Black
