315-47-103-41-003000

Active

Mill-Max Manufacturing Corp.

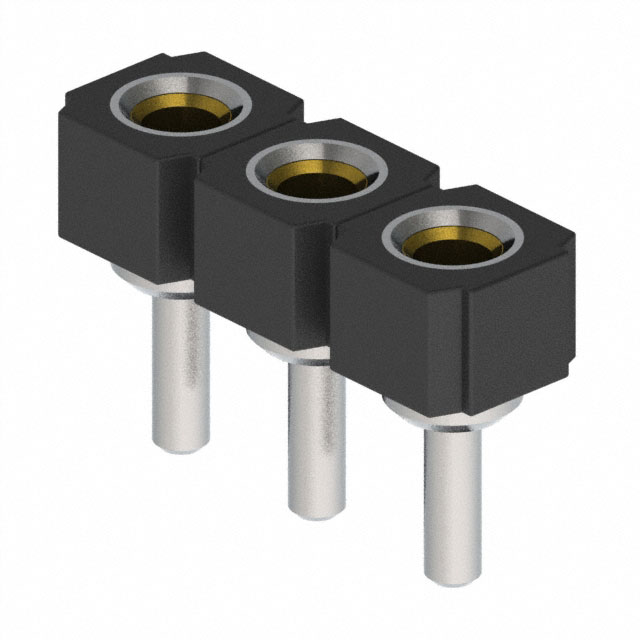

CONN RCPT 3POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

315-47-103-41-003000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 3POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	315-47-103-41-003000

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Post [x]	2.41 mm
Contact Length - Post [x]	0.095 in
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	1.8 mm
Insulation Height	0.071 "
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder
Voltage Rating	100 V, 150 VDC

315-47 Series

Part	Fastening Type	Connector Type	Contact Shape	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Voltage Rating	Number of Positions	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Material	Current Rating (Amps)	Number of Rows	Insulation Color	Termination	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]
Mill-Max Manufacturing Corp. 315-47-118-41-001000	Push-Pull	Receptacle	Circular	Through Hole	200 µin	5.08 µm	Tin	100 V 150 VDC	18	Female Socket	-55 °C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	0.108 in	2.75 mm	UL94 V-0	Flash	Beryllium Copper	3 A	1	Black	Solder	All	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 315-47-149-41-001000	Push-Pull	Receptacle	Circular	Through Hole	200 µin	5.08 µm	Tin	100 V 150 VDC	49	Female Socket	-55 °C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	0.108 in	2.75 mm	UL94 V-0	Flash	Beryllium Copper	3 A	1	Black	Solder	All	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 315-47-150-41-003000	Push-Pull	Receptacle	Circular	Through Hole	200 µin	5.08 µm	Tin	100 V 150 VDC	50	Female Socket	-55 °C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold			UL94 V-0	Flash	Beryllium Copper	3 A	1	Black	Solder	All	0.1 in	2.54 mm	1.8 mm	0.071 "	2.41 mm	0.095 in
Mill-Max Manufacturing Corp. 315-47-102-41-004000	Push-Pull	Socket	Circular	Through Hole	200 µin	5.08 µm	Tin	100 V 150 VDC	2	Female Socket	-55 °C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold				Flash	Beryllium Copper	3 A	1	Black	Solder	All	0.1 in	2.54 mm	1.27 mm	0.05 in	2.08 mm	0.082 "
Mill-Max Manufacturing Corp. 315-47-106-41-004000	Push-Pull	Socket	Circular	Through Hole	200 µin	5.08 µm	Tin	100 V 150 VDC	6	Female Socket	-55 °C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold				Flash	Beryllium Copper	3 A	1	Black	Solder	All	0.1 in	2.54 mm	1.27 mm	0.05 in	2.08 mm	0.082 "
Mill-Max Manufacturing Corp. 315-47-105-41-003000	Push-Pull	Receptacle	Circular	Through Hole	200 µin	5.08 µm	Tin	100 V 150 VDC		Female Socket	-55 °C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold			UL94 V-0	Flash	Beryllium Copper	3 A	1	Black	Solder	All	0.1 in	2.54 mm	1.8 mm	0.071 "	2.41 mm	0.095 in
Mill-Max Manufacturing Corp. 315-47-143-41-001000	Push-Pull	Receptacle	Circular	Through Hole	200 µin	5.08 µm	Tin	100 V 150 VDC	43	Female Socket	-55 °C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	0.108 in	2.75 mm	UL94 V-0	Flash	Beryllium Copper	3 A	1	Black	Solder	All	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 315-47-134-41-003000	Push-Pull	Receptacle	Circular	Through Hole	200 µin	5.08 µm	Tin	100 V 150 VDC	34	Female Socket	-55 °C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold			UL94 V-0	Flash	Beryllium Copper	3 A	1	Black	Solder	All	0.1 in	2.54 mm	1.8 mm	0.071 "	2.41 mm	0.095 in
Mill-Max Manufacturing Corp. 315-47-103-41-003000	Push-Pull	Receptacle	Circular	Through Hole	200 µin	5.08 µm	Tin	100 V 150 VDC		Female Socket	-55 °C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold			UL94 V-0	Flash	Beryllium Copper	3 A	1	Black	Solder	All	0.1 in	2.54 mm	1.8 mm	0.071 "	2.41 mm	0.095 in
Mill-Max Manufacturing Corp. 315-47-132-41-003000	Push-Pull	Receptacle	Circular	Through Hole	200 µin	5.08 µm	Tin	100 V 150 VDC		Female Socket	-55 °C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold			UL94 V-0	Flash	Beryllium Copper	3 A	1	Black	Solder	All	0.1 in	2.54 mm	1.8 mm	0.071 "	2.41 mm	0.095 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	68	$ 0.49
		136	$ 0.47
		340	$ 0.43
		476	$ 0.41
		1700	$ 0.32
		3400	$ 0.30
		6800	$ 0.29

Description

General part information

315-47 Series

3 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
