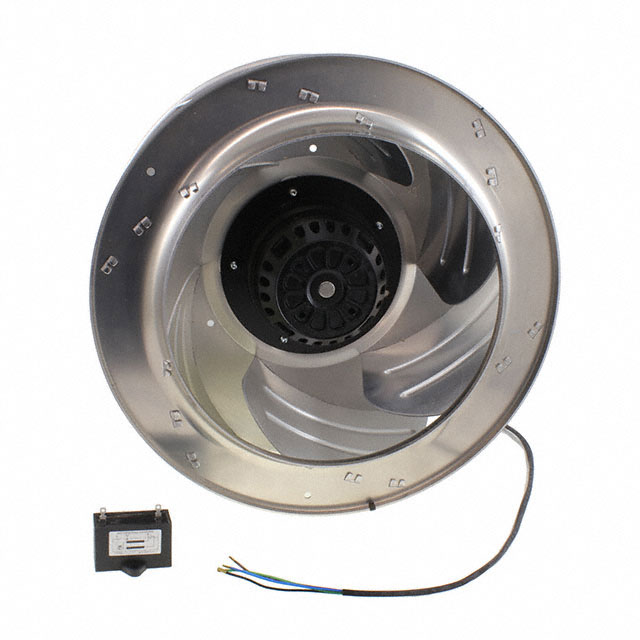

UF318AAA23-H1C4A-L32

Active

Mechatronics Bearing Group

FAN IMP MTRZ 318X154.4MM 230VAC

Search across all available documentation for this part.

Active

Mechatronics Bearing Group

FAN IMP MTRZ 318X154.4MM 230VAC

Technical Specifications

Parameters and characteristics for this part

Specification	UF318AAA23-H1C4A-L32

Air Flow	32.62 mł/min
Air Flow	1165 CFM
Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.7 A
Fan Type	Motorized Impellers
Features	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor
Material - Blade	Steel
Material - Frame	Steel
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	160 W
RPM	1580 RPM
Size / Dimension	Round
Size / Dimension [diameter]	318 mm
Static Pressure	1.6 in H2O
Static Pressure	398.6 Pa
Termination	4 Wire Leads
Voltage - Rated	230 VAC
Width [y]	154.4 mm

Part	Current Rating (Amps)	Size / Dimension [diameter]	Size / Dimension	Material - Blade	RPM	Power (Watts)	Fan Type	Features	Material - Frame	Air Flow	Air Flow	Approval Agency	Static Pressure	Static Pressure	Width [y]	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Bearing Type	Voltage - Rated
Mechatronics Bearing Group UF318AAA23-H1C4A-L32	0.7 A	318 mm	Round	Steel	1580 RPM	160 W	Motorized Impellers	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	Steel	32.62 mł/min	1165 CFM	CE cUL TUV UL	1.6 in H2O	398.6 Pa	154.4 mm	4 Wire Leads	-20 °C	70 °C	-20 C	70 °C	Ball	230 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	4	$ 206.47

General part information

Fan Motorized Impellers 230VAC Round - 318mm Dia Ball 1165.0 CFM (32.62m³/min) 4 Wire Leads
