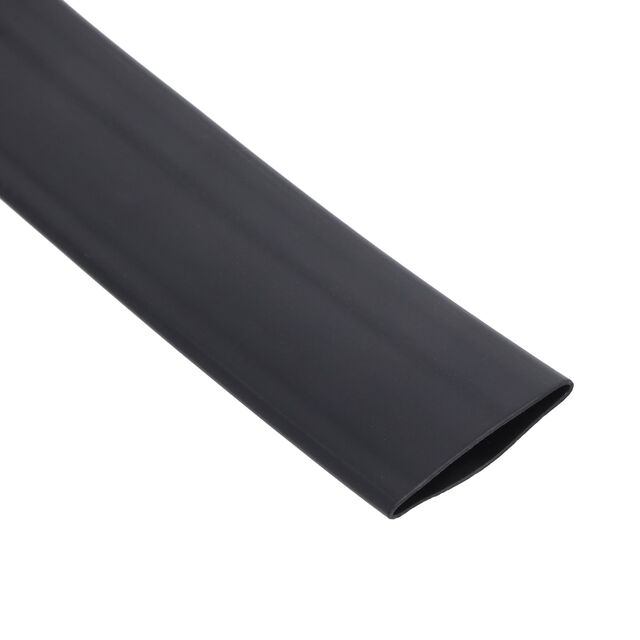

W3B2S 24/8 BLACK SPL

Active

Sumitomo Electric Interconnect Products, Inc.

HEATSHRINK 0.94" BLACK FOOT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

W3B2S 24/8 BLACK SPL

Active

Sumitomo Electric Interconnect Products, Inc.

HEATSHRINK 0.94" BLACK FOOT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	W3B2S 24/8 BLACK SPL

Color	Black
Features	Adhesive Lined, Flame Retardant
Inner Diameter - Recovered [diameter]	8.13 mm
Inner Diameter - Recovered [diameter]	0.32 "
Inner Diameter - Supplied [diameter]	23.88 mm
Inner Diameter - Supplied [diameter]	0.94 "
Length	Enter Number of Feet in Order Quantity
Material	Polyolefin (PO)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.1 in
Recovered Wall Thickness	2.54 mm
Shrink Temperature	110 °C
Shrinkage Ratio [Max]	3
Shrinkage Ratio [Min]	1
Spool Size	91.4 m
Spool Size	300 ft
Type	Tubing, Flexible

W3B2S Series

Part	Color	Operating Temperature [Min]	Operating Temperature [Max]	Spool Size	Spool Size	Length	Material	Type	Recovered Wall Thickness	Recovered Wall Thickness	Shrink Temperature	Features	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Recovered Wall Thickness	Inner Diameter - Recovered	Inner Diameter - Recovered	Inner Diameter - Supplied [diameter]
Sumitomo Electric Interconnect Products, Inc. W3B2S 3/16 BLACK SPL	Black	-55 °C	125 °C	609.6 m	2000 '	Enter Number of Feet in Order Quantity	Polyolefin (PO)	Tubing Flexible	0.043 in	1.09 mm	110 °C	Adhesive Lined Flame Retardant	1	3	4.8 mm	0.189 in
Sumitomo Electric Interconnect Products, Inc. W3B2S 1/2 BLACK SPL	Black	-55 °C	125 °C	152.4 m	500 '	Enter Number of Feet in Order Quantity	Polyolefin (PO)	Tubing Flexible	1.4 mm		110 °C	Adhesive Lined Flame Retardant	1	3	12.7 mm	0.5 in	3.99 mm	0.157 in	0.055 in
Sumitomo Electric Interconnect Products, Inc. W3B2S 24/8 BLACK SPL	Black	-55 °C	125 °C	91.4 m	300 ft	Enter Number of Feet in Order Quantity	Polyolefin (PO)	Tubing Flexible	2.54 mm		110 °C	Adhesive Lined Flame Retardant	1	3	23.88 mm	0.94 "	8.13 mm	0.32 "	0.1 in
Sumitomo Electric Interconnect Products, Inc. W3B2S 40/13 BLACK SPL	Black	-55 °C	125 °C	121.9 m	400 ft	Enter Number of Feet in Order Quantity	Polyolefin (PO)	Tubing Flexible	2.49 mm		110 °C	Adhesive Lined Flame Retardant	1	3	1.575 "				0.098 in	13 mm	0.512 in	40.01 mm
Sumitomo Electric Interconnect Products, Inc. W3B2S 1/4 BLACK SPL	Black	-55 °C	125 °C	304.8 m	1000 ft	Enter Number of Feet in Order Quantity	Polyolefin (PO)	Tubing Flexible	1.19 mm		110 °C	Adhesive Lined Flame Retardant	1	3	6.4 mm	0.252 "			0.047 "	2.01 mm	0.079 in
Sumitomo Electric Interconnect Products, Inc. W3B2S 3/4 BLACK SPL	Black	-55 °C	125 °C	121.9 m	400 ft	Enter Number of Feet in Order Quantity	Polyolefin (PO)	Tubing Flexible	1.8 mm		110 °C	Adhesive Lined Flame Retardant	1	3	19 mm	0.748 in			0.071 "	5.99 mm	0.236 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Digi-Spool®, Continuous Spool	1	$ 5.62
		5	$ 5.40
		10	$ 4.16
		25	$ 3.82
		50	$ 3.60
		100	$ 3.37

Description

General part information

W3B2S Series

Heat Shrink Tubing, Flexible 0.940" (23.88mm) 3 to 1 Black Enter Number of Feet in Order Quantity
