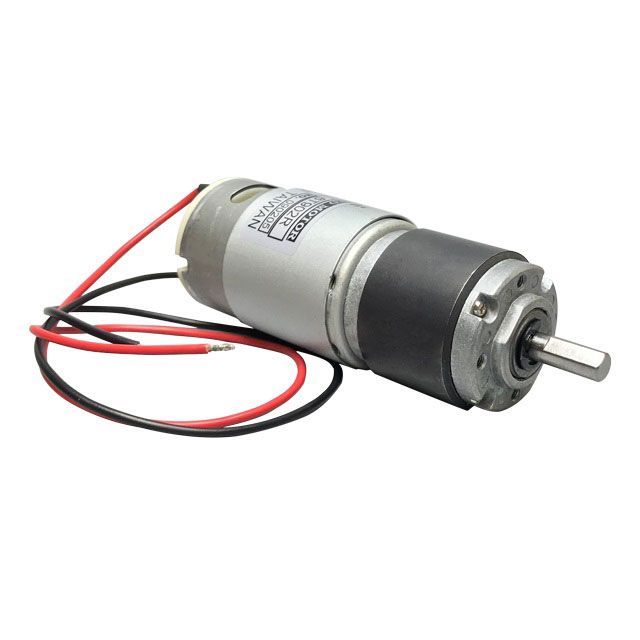

MOT-IG32PGM-24VDC
ActiveISL Products International
GEAR MOTOR BRUSH 24V W/WIRES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MOT-IG32PGM-24VDC
ActiveISL Products International
GEAR MOTOR BRUSH 24V W/WIRES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MOT-IG32PGM-24VDC |
|---|---|
| Diameter - Shaft [diameter] | 6 mm |
| Diameter - Shaft [diameter] | 0.236 in |
| Length - Shaft and Bearing | 92 mm |
| Length - Shaft and Bearing [x] | 3.622 in |
| Motor Type | Brushed |
| Mounting Hole Spacing | 18 mm |
| Mounting Hole Spacing | 0.709 in |
| Power - Rated | 15 W |
| RPM | 96 RPM |
| Termination Style | Wire Leads |
| Torque - Max Momentary (oz-in / mNm) | 555 oz-in |
| Torque - Max Momentary (oz-in / mNm) | 3922 mNm |
| Torque - Rated (oz-in / mNm) | 945 mNm |
| Torque - Rated (oz-in / mNm) | 128.5 oz-in |
| Type | DC Motor |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 78.92 | |
| 10 | $ 72.92 | |||
| 100 | $ 66.98 | |||
Description
General part information
MOT-IG32 Series
Brushed DC Motor Gearmotor 96 RPM 15W 24VDC
