C1357.41.90

Active

Prysmian Group

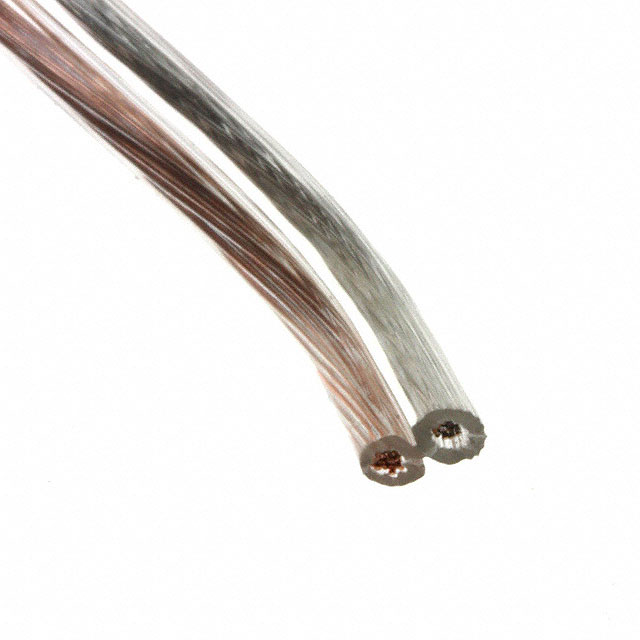

CABLE SPKR 2COND 18AWG CLR

Search across all available documentation for this part.

Active

Prysmian Group

CABLE SPKR 2COND 18AWG CLR

Technical Specifications

Parameters and characteristics for this part

Specification	C1357.41.90

Cable Type	Speaker
Conductor Material	Copper, Tinned, Copper, Bare
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.181 in
Jacket (Insulation) Diameter [diameter]	4.6 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Jacket Color	Clear
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Usage	Home, Audio-Video
Voltage	120 V
Wire Gauge	18 AWG

Part	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Wire Gauge	Length	Length	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Jacket (Insulation) Material	Length [x]	Length [x]
Prysmian Group C1357.41.90	Copper Bare Copper Tinned	0.02 in	0.508 mm	Speaker	18 AWG	1000 ft	304.8 m	Audio-Video Home	0.181 in	4.6 mm	Clear	2	16	30 AWG	120 V	Poly-Vinyl Chloride (PVC)
Prysmian Group C1357.18.08	Copper Bare Copper Tinned	0.02 in	0.508 mm	Speaker	18 AWG			Audio-Video Home	0.181 in	4.6 mm	Brown	2	16	30 AWG	120 V	Poly-Vinyl Chloride (PVC)	500 '	152.4 m
Prysmian Group C1357.41.01	Copper Annealed Bare Copper Annealed Tinned	0.025 in	0.635 mm	Speaker	18 AWG	1000 ft	304.8 m	Audio-Video Home	0.181 in	4.6 mm	Black	2	16	30 AWG	120 V	Poly-Vinyl Chloride (PVC)
Prysmian Group C1357.21.01	Copper Bare Copper Tinned	0.02 in	0.508 mm	Speaker	18 AWG	1000 ft	304.8 m	Audio-Video Home	0.181 in	4.6 mm	Black	2	16	30 AWG	120 V	Poly-Vinyl Chloride (PVC)
Prysmian Group C1357.18.01	Copper Bare Copper Tinned	0.02 in	0.508 mm	Speaker	18 AWG			Audio-Video Home	0.181 in	4.6 mm	Black	2	16	30 AWG	120 V	Poly-Vinyl Chloride (PVC)	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Speaker Cable Clear 18 AWG 1000.0' (304.8m)
