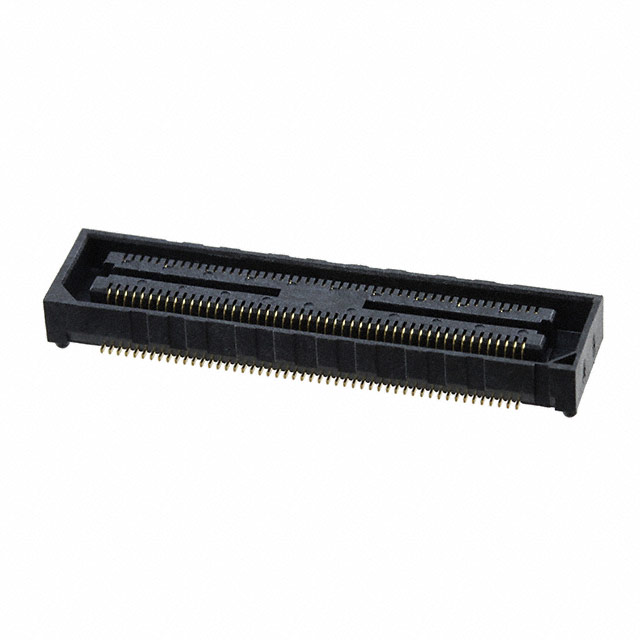

ASP-65067-01

Active

Samtec Inc.

CONN SOCKET 100POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN SOCKET 100POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	ASP-65067-01

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide
Height Above Board	3.25 mm
Height Above Board	0.128 in
Mounting Type	Surface Mount
Number of Positions	100
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Number of Rows	Mounting Type	Features	Height Above Board	Height Above Board	Connector Type	Number of Positions	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish
Samtec Inc. ASP-65067-01	2	Surface Mount	Board Guide	3.25 mm	0.128 in	Socket Center Strip Contacts	100	0.5 mm	0.02 in	10 Áin	0.25 Ám	Gold
Samtec Inc. ASP-65067-01-K-TR	2	Surface Mount	Board Guide Pick and Place	3.25 mm	0.128 in	Socket Center Strip Contacts	100	0.5 mm	0.02 in	10 Áin	0.25 Ám	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 Position Connector Socket, Center Strip Contacts Surface Mount Gold
