WR-120P-VF50-N1

Active

JAE Electronics

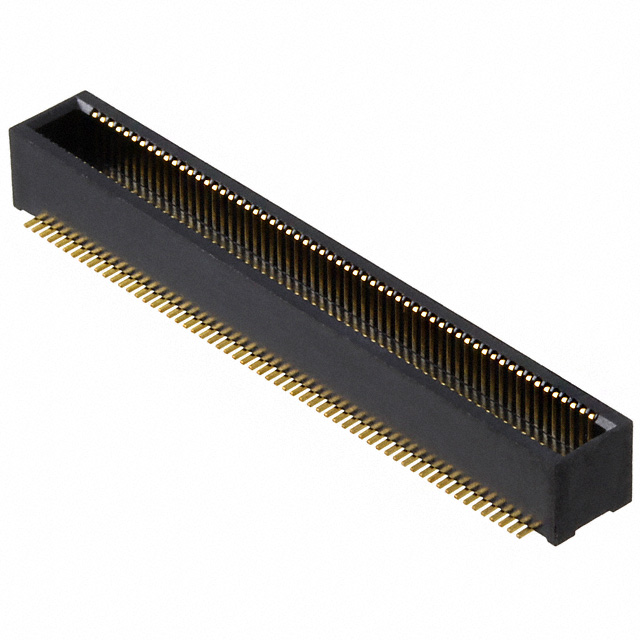

BOARD CONNECTOR, 120 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, SURFACE MOUNT TERMINAL, LEAD FREE

Search across all available documentation for this part.

Active

JAE Electronics

BOARD CONNECTOR, 120 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, SURFACE MOUNT TERMINAL, LEAD FREE

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Height Above Board	Height Above Board	Connector Type	Number of Rows	Mounting Type	Features	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights
JAE Electronics WR-120P-HF-HD-A1E	Gold	4.7 mm	0.185 in	Outer Shroud Contacts Plug	2	Surface Mount Right Angle	Solder Retention	0.5 mm	0.02 in	4 Áin	0.1 Ám	120
JAE Electronics WR-120P-VF50-N1	Gold			Outer Shroud Contacts Plug	2	Surface Mount		0.5 mm	0.02 in	4 Áin	0.1 Ám	120	4 mm	0.157 "	5 mm 5.5 mm 8 mm
JAE Electronics WR-120P-HF-HD-A1E-R1200	Gold	4.7 mm	0.185 in	Outer Shroud Contacts Plug	2	Surface Mount Right Angle	Solder Retention	0.5 mm	0.02 in	4 Áin	0.1 Ám	120
JAE Electronics WR-120P-VF60-N1	Gold			Outer Shroud Contacts Plug	2	Surface Mount		0.5 mm	0.02 in	4 Áin	0.1 Ám	120	5 mm	0.197 in	6 mm 6.5 mm 9 mm
JAE Electronics WR-120PB-VF-N1	Gold	3 mm	0.118 in	Outer Shroud Contacts Plug	2	Surface Mount	Board Guide	0.5 mm	0.02 in	4 Áin	0.1 Ám	120			4 mm 4.5 mm 7 mm
JAE Electronics WR-120PB-VF60-N1	Gold			Outer Shroud Contacts Plug	2	Surface Mount	Board Guide	0.5 mm	0.02 in	4 Áin	0.1 Ám	120	5 mm	0.197 in	6 mm 6.5 mm 9 mm
JAE Electronics WR-120PB-VF60-N1-R1200	Gold			Outer Shroud Contacts Plug	2	Surface Mount	Board Guide	0.5 mm	0.02 in	4 Áin	0.1 Ám	120	5 mm	0.197 in	6 mm 6.5 mm 9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

120 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
