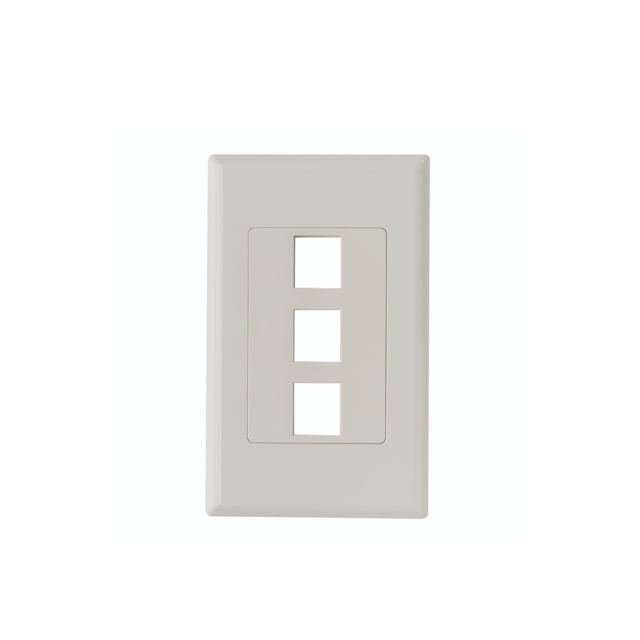

FPDS3-FW

Active

HELLERMANNTYTON

SCREWLESS DECORA 3 PORT FACEPLAT

Search across all available documentation for this part.

Active

HELLERMANNTYTON

SCREWLESS DECORA 3 PORT FACEPLAT

Technical Specifications

Parameters and characteristics for this part

Specification	FPDS3-FW

Color	Off, White
Depth [z]	7 mm
Depth [z]	0.276 in
Features	Snap-On
For Use With/Related Products	Modular Jacks
Length [x]	4.508 in
Length [x]	114.5 mm
Material	Acrylonitrile Butadiene Styrene (ABS)
Material Flammability Rating	UL94 V-0
Number of Ports	3
Port Direction	Straight
Style	Single Gang
Type	Faceplate
Width [y]	2.756 in
Width [y]	70 mm

Part	Port Direction	Features	Width [y]	Width [y]	Type	Material	For Use With/Related Products	Number of Ports	Depth [z]	Depth [z]	Material Flammability Rating	Color	Length [x]	Length [x]	Style
HELLERMANNTYTON FPDS3-FW	Straight	Snap-On	2.756 in	70 mm	Faceplate	Acrylonitrile Butadiene Styrene (ABS)	Modular Jacks	3	7 mm	0.276 in	UL94 V-0	Off White	4.508 in	114.5 mm	Single Gang

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Port Faceplate White, Off Single Gang
