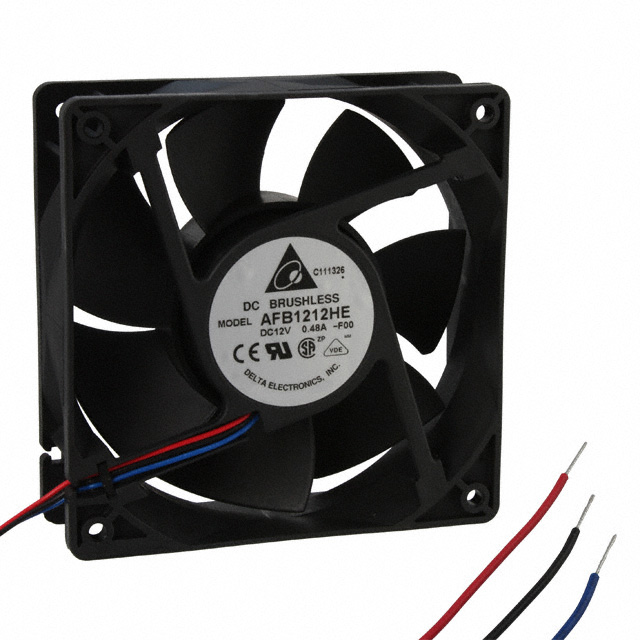

AFB1212HE-F00
ActiveDelta Electronics
FAN AXIAL 120X38MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
AFB1212HE-F00
ActiveDelta Electronics
FAN AXIAL 120X38MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AFB1212HE-F00 |
|---|---|
| Air Flow | 2.97 mł/min |
| Air Flow | 105.9 CFM |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 320 mA |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach), Locked Rotor Protection |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 41 dB |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 3.84 W |
| RPM | 2600 RPM |
| Size / Dimension [x] | 120 mm |
| Size / Dimension [y] | 120 mm |
| Static Pressure | 74.7 Pa |
| Static Pressure | 0.3 in H2O |
| Termination | 3 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.2 VDC |
| Voltage Range [Min] | 4 VDC |
| Weight | 256.28 g |
| Weight | 0.565 lb |
| Width [y] | 38 mm |
AFB1212 Series
| Part | Power (Watts) | RPM | Voltage - Rated | Width [y] | Size / Dimension [y] | Size / Dimension [x] | Air Flow | Air Flow | Weight | Weight | Material - Blade | Noise | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Max] | Material - Frame | Lifetime @ Temp. | Static Pressure | Static Pressure | Features | Fan Type | Bearing Type | Termination | Voltage Range [Max] | Voltage Range [Min] | Current Rating (Amps) | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics | 5.52 W | 2900 RPM | 12 VDC | 38 mm | 120 mm | 120 mm | 3.36 m³/min | 120.1 CFM | 256.28 g | 0.565 lb | Plastic | 44 dB | -10 °C | -10 °C | 60 °C | 60 °C | Plastic | 70000 Hrs | 0.354 in H2O | 88.2 Pa | Locked Rotor Protection Speed Sensor (Tach) | Tubeaxial | Ball | 3 Wire Leads | 13.2 VDC | 4 VDC | 460 mA | CE CSA UL VDE |
Delta Electronics | 29.4 W | 5200 RPM | 12 VDC | 38 mm | 120 mm | 120 mm | 6.75 mł/min | 241 CFM | 330.22 g | 0.728 lb | Plastic | 62 dB(A) | -10 °C | -10 °C | 70 °C | 70 °C | Plastic | 70000 Hrs | 1.082 in H2O | 269.5 Pa | Tubeaxial | Ball | 2 Wire Leads | 12.8 VDC | 6 VDC | 2.45 A | CE CSA UL VDE | |
Delta Electronics | 2.28 W | 2000 RPM | 12 VDC | 38 mm | 120 mm | 120 mm | 2.37 m³/min | 84.8 CFM | 256.28 g | 0.565 lb | Plastic | 34 dB(A) | -10 °C | -10 °C | 60 °C | 60 °C | Plastic | 70000 Hrs | 0.18 in H2O | 44.8 Pa | Locked Rotor Sensor | Tubeaxial | Ball | 3 Wire Leads | 13.2 VDC | 4 VDC | 0.19 A | CE CSA UL VDE |
Delta Electronics | 4.8 W | 3100 RPM | 12 VDC | 25.4 mm | 120 mm | 120 mm | 2.91 mł/min | 103.8 CFM | 198 g | 0.437 lb | Plastic | 44.5 dB | -10 °C | -10 °C | 60 °C | 60 °C | Plastic | 70000 Hrs | 0.371 in H2O | 92.5 Pa | Locked Rotor Protection Speed Sensor (Tach) | Tubeaxial | Ball | 3 Wire Leads | 13.8 VDC | 7 V | 400 mA | CE CSA UL VDE |
Delta Electronics | 8.16 W | 4000 RPM | 12 VDC | 38 mm | 120 mm | 120 mm | 4.15 m³/min | 148.3 CFM | 320.24 g | 0.706 lb | Plastic | 51 dB(A) | -10 °C | -10 °C | 70 °C | 70 °C | Plastic | 70000 Hrs | 0.602 in H2O | 149.9 Pa | Locked Rotor Protection Speed Sensor (Tach) | Tubeaxial | Ball | 3 Wire Leads | 12.8 VDC | 6 VDC | 0.68 A | CE CSA UL VDE |
Delta Electronics | 29.4 W | 5200 RPM | 12 VDC | 38 mm | 120 mm | 120 mm | 6.75 mł/min | 241 CFM | 330.22 g | 0.728 lb | Plastic | 62 dB(A) | -10 °C | -10 °C | 70 °C | 70 °C | Plastic | 70000 Hrs | 1.082 in H2O | 269.5 Pa | Locked Rotor Protection Speed Sensor (Tach) | Tubeaxial | Ball | 3 Wire Leads | 12.8 VDC | 6 VDC | 2.45 A | CE CSA UL VDE |
Delta Electronics | 3.84 W | 2600 RPM | 12 VDC | 38 mm | 120 mm | 120 mm | 2.97 mł/min | 105.9 CFM | 256.28 g | 0.565 lb | Plastic | 41 dB | -10 °C | -10 °C | 60 °C | 60 °C | Plastic | 70000 Hrs | 0.3 in H2O | 74.7 Pa | Locked Rotor Protection Speed Sensor (Tach) | Tubeaxial | Ball | 3 Wire Leads | 13.2 VDC | 4 VDC | 320 mA | CE CSA UL VDE |
Delta Electronics | 21.6 W | 4600 RPM | 12 VDC | 38 mm | 120 mm | 120 mm | 5.95 m³/min | 212.6 CFM | 330.22 g | 0.728 lb | Plastic | 58.5 dB | Plastic | 0.844 in H2O | 210.2 Pa | Speed Sensor (Tach) | Tubeaxial | Ball | 3 Wire Leads | 13.8 VDC | 6 VDC | 1.8 A | CE CSA UL VDE | |||||
Delta Electronics | 6.36 W | 3400 RPM | 12 VDC | 25.4 mm | 120 mm | 120 mm | 3.17 m³/min | 113.1 CFM | 198 g | 0.437 lb | Plastic | 46.5 dB | -10 °C | -10 °C | 60 °C | 60 °C | Plastic | 70000 Hrs | 0.43 in H2O | 107.1 Pa | Tubeaxial | Ball | 2 Wire Leads | 13.8 VDC | 7 V | 0.53 A | CE CSA UL VDE | |
Delta Electronics | 6.36 W | 3400 RPM | 12 VDC | 25.4 mm | 120 mm | 120 mm | 3.17 m³/min | 113.1 CFM | 198 g | 0.437 lb | Plastic | 46.5 dB | -10 °C | -10 °C | 60 °C | 60 °C | Plastic | 70000 Hrs | 0.43 in H2O | 107.1 Pa | Locked Rotor Sensor | Tubeaxial | Ball | 3 Wire Leads | 13.8 VDC | 7 V | 0.53 A | CE CSA UL VDE |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.01 | |
| 10 | $ 14.33 | |||
| 36 | $ 12.96 | |||
| 72 | $ 12.01 | |||
Description
General part information
AFB1212 Series
Fan Tubeaxial 12VDC Square - 120mm L x 120mm H Ball 105.9 CFM (2.97m³/min) 3 Wire Leads
