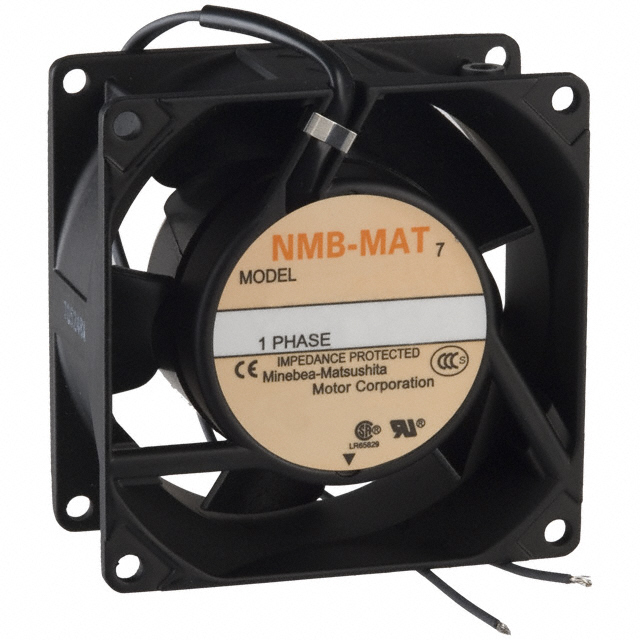

3115PS-23W-B10-A00

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 80X38MM 230VAC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans & Blowers Catalog Datasheet +1

3115PS-23W-B10-A00

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 80X38MM 230VAC WIRE

Deep-Dive with AI

DocumentsFans & Blowers Catalog Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3115PS-23W-B10-A00

Air Flow	0.616 m³/min
Air Flow	22 CFM
Approval Agency	CSA, UL, VDE, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	50 mA
Fan Type	Tubeaxial
Lifetime @ Temp.	50000 Hrs
Material - Blade	Polycarbonate (PC), Fiberglass Reinforced
Material - Frame	Aluminum
Noise	26 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	5 W
RPM	2100 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	24.5 Pa
Static Pressure	0.098 in H2O
Termination	2 Wire Leads
Voltage - Rated	230 VAC
Weight	0.59 lb
Weight	267.62 g
Width [y]	38 mm

3115PS Series

Part	Power (Watts)	Voltage - Rated	Material - Blade	Noise	Air Flow	Air Flow	RPM	Material - Frame	Bearing Type	Approval Agency	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [x]	Weight	Weight	Fan Type	Lifetime @ Temp.	Termination	Width [y]
NMB TECHNOLOGIES 3115PS-24T-B20-A00	6 W	240 VAC	Fiberglass Reinforced Polycarbonate (PC)	35 dB	26.5 CFM	0.742 m³/min	2600 RPM	Aluminum	Ball	CE CSA TUV UL VDE	37.2 Pa	0.149 in H2O	70 °C	70 °C	-10 °C	-10 °C	45 mA	80 mm	80 mm	269.89 g	0.595 lb	Tubeaxial	50000 Hrs	2 Terminals	38 mm
NMB TECHNOLOGIES 3115PS-10T-B20-B00		100 VAC	Fiberglass Reinforced Polycarbonate (PC)	32 dB	24 CFM	0.672 mł/min	2300 RPM	Aluminum	Ball	CE CSA TUV UL VDE	29.4 Pa	0.118 in H2O	70 °C	70 °C	-10 °C	-10 °C	70 mA	80 mm	80 mm	269.89 g	0.595 lb	Tubeaxial	50000 Hrs	2 Terminals	38 mm
NMB TECHNOLOGIES 3115PS-24T-B10-A00	6 W	240 VAC	Fiberglass Reinforced Polycarbonate (PC)	26 dB	21.6 CFM	0.605 m³/min	2150 RPM	Aluminum	Ball	CE CSA TUV UL VDE	25.4 Pa	0.102 in H2O	70 °C	70 °C	-10 °C	-10 °C	0.055 A	80 mm	80 mm	269.89 g	0.595 lb	Tubeaxial	50000 Hrs	2 Terminals	38 mm
NMB TECHNOLOGIES 3115PS-23W-B10-A00	5 W	230 VAC	Fiberglass Reinforced Polycarbonate (PC)	26 dB	22 CFM	0.616 m³/min	2100 RPM	Aluminum	Ball	CE CSA TUV UL VDE	24.5 Pa	0.098 in H2O	70 °C	70 °C	-10 °C	-10 °C	50 mA	80 mm	80 mm	267.62 g	0.59 lb	Tubeaxial	50000 Hrs	2 Wire Leads	38 mm
NMB TECHNOLOGIES 3115PS-23W-B20-A00	6 W	230 VAC	Fiberglass Reinforced Polycarbonate (PC)	34 dB(A)	26 CFM	0.728 m³/min	2500 RPM	Aluminum	Ball	CE CSA TUV UL VDE	35.2 Pa	0.14 in H2O	70 °C	70 °C	-10 °C	-10 °C	45 mA	80 mm	80 mm	267.62 g	0.59 lb	Tubeaxial	50000 Hrs	2 Wire Leads	38 mm
NMB TECHNOLOGIES 3115PS-23T-B20-A00	6 W	230 VAC	Fiberglass Reinforced Polycarbonate (PC)	34 dB(A)	26 CFM	0.728 m³/min	2500 RPM	Aluminum	Ball	CE CSA TUV UL VDE	35.2 Pa	0.14 in H2O	70 °C	70 °C	-10 °C	-10 °C	45 mA	80 mm	80 mm	267.62 g	0.59 lb	Tubeaxial	50000 Hrs	2 Terminals	38 mm
NMB TECHNOLOGIES 3115PS-20T-B10-B00		200 VAC	Fiberglass Reinforced Polycarbonate (PC)	26 dB	19.4 CFM	0.543 m³/min	1900 RPM	Aluminum	Ball	CE CSA TUV UL VDE	21.5 Pa	0.086 in H2O	70 °C	70 °C	-10 °C	-10 °C	40 mA	80 mm	80 mm	269.89 g	0.595 lb	Tubeaxial	50000 Hrs	2 Terminals	38 mm
NMB TECHNOLOGIES 3115PS-12W-B30-A00	7 W	115 VAC	Fiberglass Reinforced Polycarbonate (PC)	38 dB(A)	32 CFM	0.896 m³/min	3200 RPM	Aluminum	Ball	CE CSA TUV UL VDE	49.8 Pa	0.2 in H2O	70 °C	70 °C	-10 °C	-10 °C	110 mA	80 mm	80 mm	267.62 g	0.59 lb	Tubeaxial	50000 Hrs	2 Wire Leads	38 mm
NMB TECHNOLOGIES 3115PS-12W-B20-A00	4.5 W	115 VAC	Fiberglass Reinforced Polycarbonate (PC)	32 dB	24 CFM	0.672 mł/min	2300 RPM	Aluminum	Ball	CE CSA TUV UL VDE	30 Pa	0.12 in H2O	70 °C	70 °C	-10 °C	-10 °C	70 mA	80 mm	80 mm	267.62 g	0.59 lb	Tubeaxial	50000 Hrs	2 Wire Leads	38 mm
NMB TECHNOLOGIES 3115PS-10T-B10-B00		100 VAC	Fiberglass Reinforced Polycarbonate (PC)	25 dB(A)	19.4 CFM	0.543 m³/min	1900 RPM	Aluminum	Ball	CE CSA TUV UL VDE	21.5 Pa	0.086 in H2O	70 °C	70 °C	-10 °C	-10 °C	0.055 A	80 mm	80 mm	269.89 g	0.595 lb	Tubeaxial	50000 Hrs	2 Terminals	38 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

3115PS Series

Fan Tubeaxial 230VAC Square - 80mm L x 80mm H Ball 22.0 CFM (0.616mł/min) 2 Wire Leads
