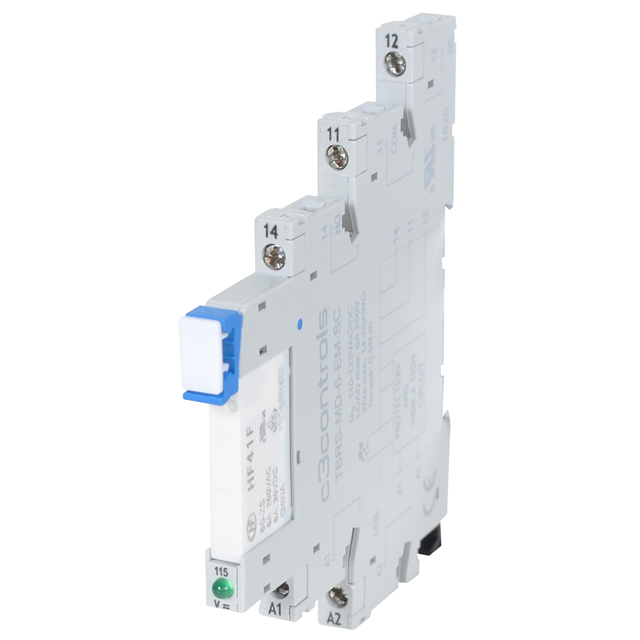

TBR-MD-6-1P-SC

Active

c3controls

RELAY GEN PURP SPDT 6A 110-125V

Search across all available documentation for this part.

Active

c3controls

RELAY GEN PURP SPDT 6A 110-125V

Technical Specifications

Parameters and characteristics for this part

Part	Coil Type	Contact Form	Contact Material	Termination Style	Relay Type	Release Time	Operating Temperature [Min]	Operating Temperature [Max]	Coil Voltage [Max]	Coil Voltage [Min]	Contact Rating (Current)	Operate Time	Mounting Type	Switching Voltage [Max]	Must Release Voltage	Must Operate Voltage	Coil Voltage
c3controls TBR-MD-6-1P-SC	Non Latching	SPDT (1 Form C)	Silver Nickel (AgNi)	Screw Terminal	General Purpose	4 ms	-40 °C	55 °C	125 VAC	110 VAC/DC	6 A	8 ms	DIN Rail	30 VDC 250 VAC
c3controls TBR-MF-6-1P-SC	Non Latching	SPDT (1 Form C)	Silver Nickel (AgNi)	Screw Terminal	General Purpose	4 ms	-40 °C	55 °C	240 VAC	220 VAC	6 A	8 ms	DIN Rail	30 VDC 250 VAC
c3controls TBR-MB-6-1P-SC	Non Latching	SPDT (1 Form C)	Silver Nickel (AgNi)	Screw Terminal	General Purpose	4 ms	-40 °C	55 °C			6 A	8 ms	DIN Rail	30 VDC 250 VAC	1.2 VAC	10.8 VAC/DC	12 VAC/DC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay SPDT (1 Form C) 110 ~ 125VAC/DC Coil DIN Rail
