IMSA-13065B-2-16Y902
ActiveIRISO USA Inc.

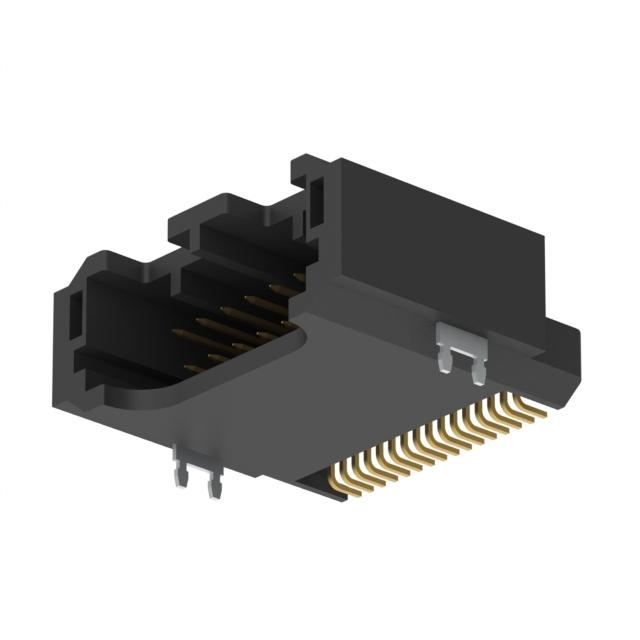

HEADER SMT RA 16POS KEY-C
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IMSA-13065B-2-16Y902
ActiveIRISO USA Inc.
HEADER SMT RA 16POS KEY-C
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IMSA-13065B-2-16Y902 |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 1 µm |
| Contact Finish Thickness - Mating | 39.4 µin |
| Contact Finish Thickness - Post | 1 çm |
| Contact Finish Thickness - Post | 39.4 çin |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Features | Solder Retention |
| Insulation Color | Black |
| Insulation Height | 0.366 in |
| Insulation Height | 9.3 mm |
| Insulation Material | Polyphenylene Sulfide (PPS) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 16 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.098 in |
| Row Spacing - Mating | 2.5 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
IMSA-13065B Series
| Part | Features | Insulation Material | Contact Material | Style | Insulation Color | Row Spacing - Mating | Row Spacing - Mating | Number of Positions | Contact Type | Connector Type | Pitch - Mating [x] | Pitch - Mating [x] | Contact Finish - Post | Number of Positions Loaded | Mounting Type | Termination | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Fastening Type | Number of Rows | Contact Shape | Insulation Height | Insulation Height | Material Flammability Rating | Shrouding | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IRISO USA Inc. | Solder Retention | Polyphenylene Sulfide (PPS) | Copper Alloy | Board to Board Cable | Black | 0.098 in | 2.5 mm | 12 | Male Pin | Header | 0.079 in | 2 mm | Tin | All | Surface Mount Right Angle | Solder | 1 µm | 39.4 µin | 1 çm | 39.4 çin | Locking Ramp | 2 | Square | 0.366 in | 9.3 mm | UL94 V-0 | Shrouded - 4 Wall | |
IRISO USA Inc. | Solder Retention | Polyphenylene Sulfide (PPS) | Copper Alloy | Board to Board Cable | Black | 0.098 in | 2.5 mm | 28 | Male Pin | Header | 0.079 in | 2 mm | Tin | All | Surface Mount Right Angle | Solder | 1 µm | 39.4 µin | 1 çm | 39.4 çin | Locking Ramp | 2 | Square | 0.366 in | 9.3 mm | UL94 V-0 | Shrouded - 4 Wall | |
IRISO USA Inc. | Solder Retention | Polyphenylene Sulfide (PPS) | Copper Alloy | Board to Board Cable | Black | 0.098 in | 2.5 mm | Male Pin | Header | 0.079 in | 2 mm | Tin | All | Surface Mount Right Angle | Solder | 1 µm | 39.4 µin | 1 çm | 39.4 çin | Locking Ramp | 2 | Square | 0.366 in | 9.3 mm | UL94 V-0 | Shrouded - 4 Wall | 16 | |
IRISO USA Inc. | Solder Retention | Polyphenylene Sulfide (PPS) | Copper Alloy | Board to Board Cable | Black | 0.098 in | 2.5 mm | 24 | Male Pin | Header | 0.079 in | 2 mm | Tin | All | Surface Mount Right Angle | Solder | 1 µm | 39.4 µin | 1 çm | 39.4 çin | Locking Ramp | 2 | Square | 0.366 in | 9.3 mm | UL94 V-0 | Shrouded - 4 Wall | |
IRISO USA Inc. | Solder Retention | Polyphenylene Sulfide (PPS) | Copper Alloy | Board to Board Cable | Black | 0.098 in | 2.5 mm | Male Pin | Header | 0.079 in | 2 mm | Tin | All | Surface Mount Right Angle | Solder | 1 µm | 39.4 µin | 1 çm | 39.4 çin | Locking Ramp | 2 | Square | 0.366 in | 9.3 mm | UL94 V-0 | Shrouded - 4 Wall | ||
IRISO USA Inc. | Solder Retention | Polyphenylene Sulfide (PPS) | Copper Alloy | Board to Board Cable | Black | 0.098 in | 2.5 mm | 12 | Male Pin | Header | 0.079 in | 2 mm | Tin | All | Surface Mount Right Angle | Solder | 1 µm | 39.4 µin | 1 çm | 39.4 çin | Locking Ramp | 2 | Square | 0.366 in | 9.3 mm | UL94 V-0 | Shrouded - 4 Wall | |
IRISO USA Inc. | Solder Retention | Polyphenylene Sulfide (PPS) | Copper Alloy | Board to Board Cable | Black | 0.098 in | 2.5 mm | 20 | Male Pin | Header | 0.079 in | 2 mm | Tin | All | Surface Mount Right Angle | Solder | 1 µm | 39.4 µin | 1 çm | 39.4 çin | Locking Ramp | 2 | Square | 0.366 in | 9.3 mm | UL94 V-0 | Shrouded - 4 Wall | |
IRISO USA Inc. | Solder Retention | Polyphenylene Sulfide (PPS) | Copper Alloy | Board to Board Cable | Black | 0.098 in | 2.5 mm | Male Pin | Header | 0.079 in | 2 mm | Tin | All | Surface Mount Right Angle | Solder | 1 µm | 39.4 µin | 1 çm | 39.4 çin | Locking Ramp | 2 | Square | 0.366 in | 9.3 mm | UL94 V-0 | Shrouded - 4 Wall | 16 | |
IRISO USA Inc. | Solder Retention | Polyphenylene Sulfide (PPS) | Copper Alloy | Board to Board Cable | Black | 0.098 in | 2.5 mm | 8 | Male Pin | Header | 0.079 in | 2 mm | Tin | All | Surface Mount Right Angle | Solder | 1 µm | 39.4 µin | 1 çm | 39.4 çin | Locking Ramp | 2 | Square | 0.366 in | 9.3 mm | UL94 V-0 | Shrouded - 4 Wall | |
IRISO USA Inc. | Solder Retention | Polyphenylene Sulfide (PPS) | Copper Alloy | Board to Board Cable | Black | 0.098 in | 2.5 mm | 40 | Male Pin | Header | 0.079 in | 2 mm | Tin | All | Surface Mount Right Angle | Solder | 1 µm | 39.4 µin | 1 çm | 39.4 çin | Locking Ramp | 2 | Square | 0.366 in | 9.3 mm | UL94 V-0 | Shrouded - 4 Wall |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.82 | |
| 10 | $ 1.39 | |||
| 100 | $ 1.07 | |||
| Digi-Reel® | 1 | $ 1.82 | ||
| 10 | $ 1.39 | |||
| 100 | $ 1.07 | |||
| Tape & Reel (TR) | 300 | $ 0.71 | ||
| 600 | $ 0.66 | |||
Description
General part information
IMSA-13065B Series
Connector Header Surface Mount, Right Angle 16 position 0.079" (2.00mm)
