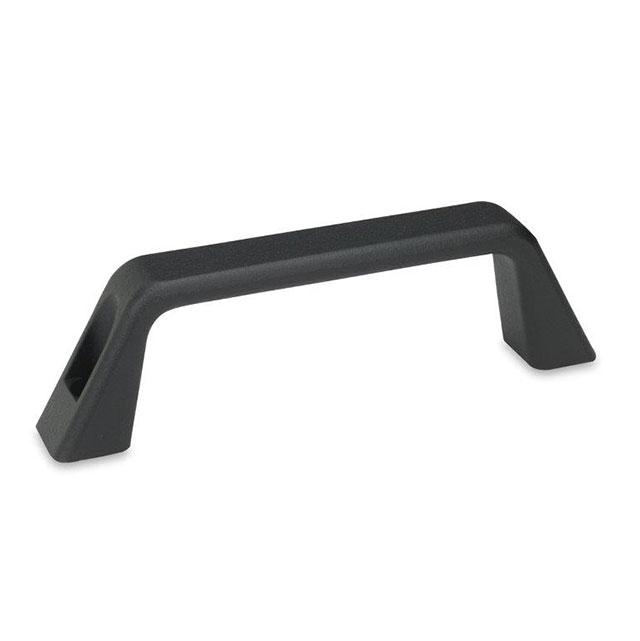

225W120D97K/B

Active

J.W. Winco

HANDLE ALUMINUM MTG CTR 4.72"

Search across all available documentation for this part.

Active

J.W. Winco

HANDLE ALUMINUM MTG CTR 4.72"

Technical Specifications

Parameters and characteristics for this part

Specification	225W120D97K/B

Height [z]	42.42 mm
Height [z]	1.67 in
Length - Center to Center [custom]	119.89 mm
Length - Center to Center [custom]	4.72 in
Material	Aluminum
Mounting Type	Screw Holes, Back
Thread/Screw/Hole Size	M6
Type	Instrumentation

Part	Height [z]	Height [z]	Type	Mounting Type	Length - Center to Center [custom]	Length - Center to Center [custom]	Thread/Screw/Hole Size	Material
J.W. Winco 225W120D97K/B	42.42 mm	1.67 in	Instrumentation	Screw Holes Back	119.89 mm	4.72 in	M6	Aluminum
J.W. Winco 225W120D97T/A	42.42 mm	1.67 in	Instrumentation	Screw Holes Back	119.89 mm	4.72 in	M6	Aluminum
J.W. Winco 225W120D97T/B	42.42 mm	1.67 in	Instrumentation	Screw Holes Back	119.89 mm	4.72 in	M6	Aluminum

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 9.89

General part information

Instrumentation Handle Aluminum Screw Holes, Back

Technical documentation and resources
