201-0110-01

Active

Schmartboard, Inc.

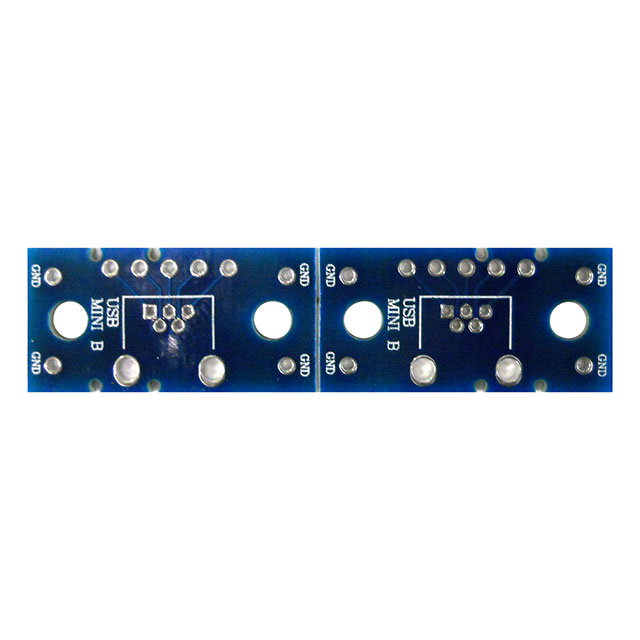

THROUGH HOLE. USB MINI B CONNECT

Search across all available documentation for this part.

Active

Schmartboard, Inc.

THROUGH HOLE. USB MINI B CONNECT

Technical Specifications

Parameters and characteristics for this part

Specification	201-0110-01

Number of Positions	18
Package Accepted	USB - mini B
Proto Board Type	Connector to Plated Through Hole
Size / Dimension [x]	2 in
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	0.5 in
Size / Dimension [y]	12.7 mm

Part	Proto Board Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package Accepted	Number of Positions
Schmartboard, Inc. 201-0110-01	Connector to Plated Through Hole	0.5 in	12.7 mm	2 in	50.8 mm	USB - mini B	18

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 2.50

General part information

THROUGH HOLE. USB MINI B CONNECT
