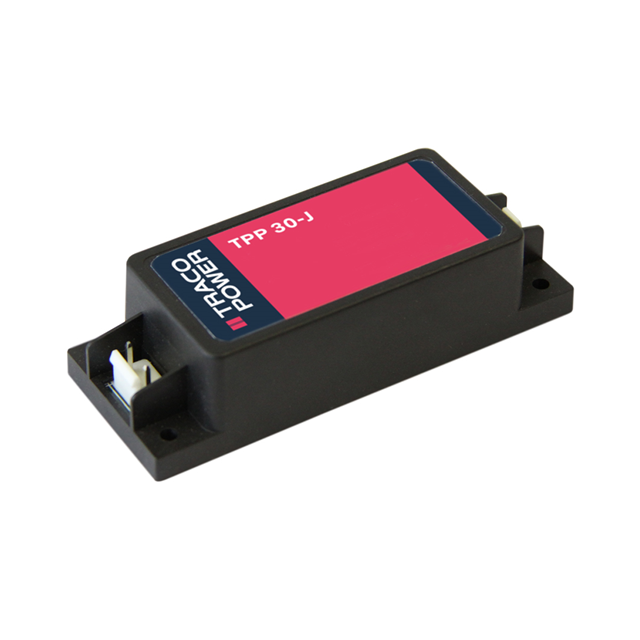

TPP 30-109-J

Active

Traco Power

AC/DC CONVERTER 9V 30W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TPP 30-109-J

Active

Traco Power

AC/DC CONVERTER 9V 30W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TPP 30-109-J

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	CB, cURus, CE
Current - Output 1	3.34 A
Efficiency	88 %
Features	Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	30 W
Size / Dimension [x]	100.3 mm
Size / Dimension [x]	3.95 in
Size / Dimension [y]	38.1 mm
Size / Dimension [y]	1.5 in
Size / Dimension [z]	1 "
Size / Dimension [z]	25.4 mm
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	85 VAC, 120 VDC
Voltage - Isolation	4000 V
Voltage - Output 1	9 V

TPP 30 Series

Part	Number of Outputs	Power (Watts)	Approval Agency	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Features	Type	Mounting Type	Load Regulation	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Output 1	Current - Output (Max) [Max]	Voltage - Isolation	Current - Output 1
Traco Power TPP 30-148A-D	1	30 W	CB CE cURus	5-DIP Module	85 °C	-40 °C	91.5 %	85 VAC 120 VDC	264 VAC 370 VDC	Household Appliances ITE (Commercial) Medical	Adjustable Output Universal Input	Open Frame	Through Hole	0.5 %	24.1 mm	69.7 mm	1.36 "	2.74 "	24.13 mm	34.6 mm	48 V	630 mA
Traco Power TPP 30-109-J	1	30 W	CB CE cURus		85 °C	-40 °C	88 %	85 VAC 120 VDC	264 VAC 370 VDC	Household Appliances ITE (Commercial) Medical	Adjustable Output Universal Input	Enclosed	Chassis Mount		25.4 mm	100.3 mm	1.5 in	3.95 in	1 "	38.1 mm	9 V		4000 V	3.34 A
Traco Power TPP 30-115A-D	1	30 W	CB CE cURus	5-DIP Module	85 °C	-40 °C	90.5 %	85 VAC 120 VDC	264 VAC 370 VDC	Household Appliances ITE (Commercial) Medical	Adjustable Output Universal Input	Open Frame	Through Hole	0.5 %	24.1 mm	69.7 mm	1.36 "	2.74 "	24.13 mm	34.6 mm	15 V	2 A
Traco Power TPP 30-115A-J	1	30 W	CB CE cURus		85 °C	-40 °C	90.5 %	85 VAC 120 VDC	264 VAC 370 VDC	Household Appliances ITE (Commercial) Medical	Adjustable Output Universal Input	Open Frame	Chassis Mount		19.6 mm	84.8 mm	1.36 "	3.34 in	0.77 "	34.5 mm	15 V		4000 V	2 A
Traco Power TPP 30-136A-J	1	30 W	CB CE cURus		85 °C	-40 °C	90 %	85 VAC 120 VDC	264 VAC 370 VDC	Household Appliances ITE (Commercial) Medical	Adjustable Output Universal Input	Open Frame	Chassis Mount		19.6 mm	84.8 mm	1.36 "	3.34 in	0.77 "	34.5 mm	36 V		4000 V	840 mA
Traco Power TPP 30-124A-D	1	30 W	CB CE cURus	5-DIP Module	85 °C	-40 °C		85 VAC 120 VDC	264 VAC 370 VDC	Household Appliances ITE (Commercial) Medical	Adjustable Output Universal Input	Open Frame	Through Hole	0.5 %	24.1 mm	69.7 mm	1.36 "	2.74 "	24.13 mm	34.6 mm	24 V	1.25 A
Traco Power TPP 30-109A-J	1	30 W	CB CE cURus		85 °C	-40 °C	88 %	85 VAC 120 VDC	264 VAC 370 VDC	Household Appliances ITE (Commercial) Medical	Adjustable Output Universal Input	Open Frame	Chassis Mount		19.6 mm	84.8 mm	1.36 "	3.34 in	0.77 "	34.5 mm	9 V		4000 V	3.34 A
Traco Power TPP 30-112-D	1	30 W	CB CE cURus	5-DIP Module	85 °C	-40 °C	90.5 %	85 VAC 120 VDC	264 VAC 370 VDC	Household Appliances ITE (Commercial) Medical	Adjustable Output Universal Input	Enclosed	Through Hole	0.5 %	25.6 mm	73.3 mm	1.5 in	2.89 in	1.01 in	38.1 mm	12 V	2.5 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 65.83
		10	$ 60.44
		25	$ 58.43
		50	$ 56.94
		100	$ 55.50
		250	$ 48.29

Description

General part information

TPP 30 Series

Enclosed AC DC Converters 1 Output 9V 85 ~ 264 VAC, 120 ~ 370 VDC Input
