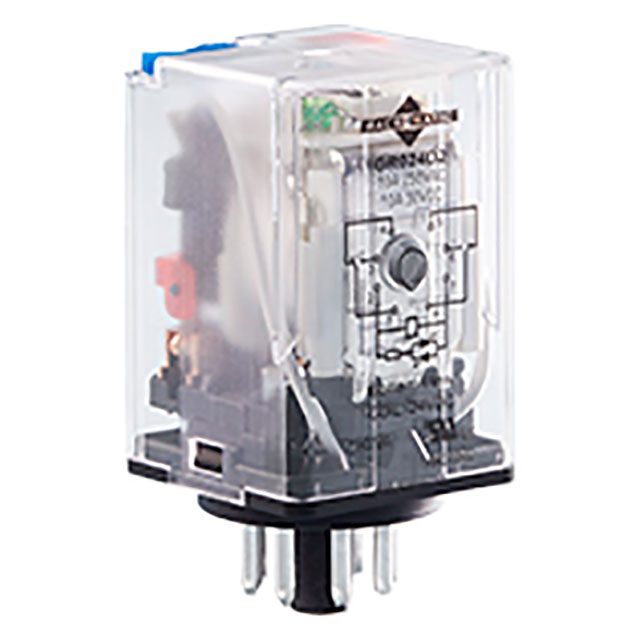

GR024D2

Active

Macromatic Industrial Controls

RELAY GEN PURPOSE DPDT 10A 24V

Search across all available documentation for this part.

Active

Macromatic Industrial Controls

RELAY GEN PURPOSE DPDT 10A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	GR024D2

Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	DPDT (2 Form C)
Contact Rating (Current)	10 A
Features	Test Button, Lighted Indicator
Mounting Type	Socketable
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Switching Voltage [Max]	30 VDC, 250 VAC
Termination Style	Plug In, 8 Pin (Octal)

Part	Contact Form	Switching Voltage [Max]	Relay Type	Coil Type	Termination Style	Mounting Type	Contact Rating (Current)	Coil Voltage	Features	Operating Temperature [Min]	Operating Temperature [Max]
Macromatic Industrial Controls GR024D2	DPDT (2 Form C)	30 VDC 250 VAC	General Purpose	Non Latching	Plug In 8 Pin (Octal)	Socketable	10 A	24 VDC	Lighted Indicator Test Button	-40 °C	55 °C
Macromatic Industrial Controls GR024D3T	3PDT (3 Form C)	30 VDC 250 VAC	General Purpose	Non Latching	Plug In 11 Pin (Octal)	Socketable	10 A	24 VDC	Lighted Indicator	-40 °C	55 °C
Macromatic Industrial Controls GR024D3	3PDT (3 Form C)	30 VDC 250 VAC	General Purpose	Non Latching	Plug In 11 Pin (Octal)	Socketable	10 A	24 VDC	Lighted Indicator Test Button	-40 °C	55 °C
Macromatic Industrial Controls GR024D2T	DPDT (2 Form C)	30 VDC 250 VAC	General Purpose	Non Latching	Plug In 8 Pin (Octal)	Socketable	10 A	24 VDC	Lighted Indicator	-40 °C	55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 16.03

General part information

General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable
