BM22-4S-V(53)

Active

Hirose Electric USA, Inc.

CONN RCPT 4POS GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBM22 Series Datasheet Datasheet

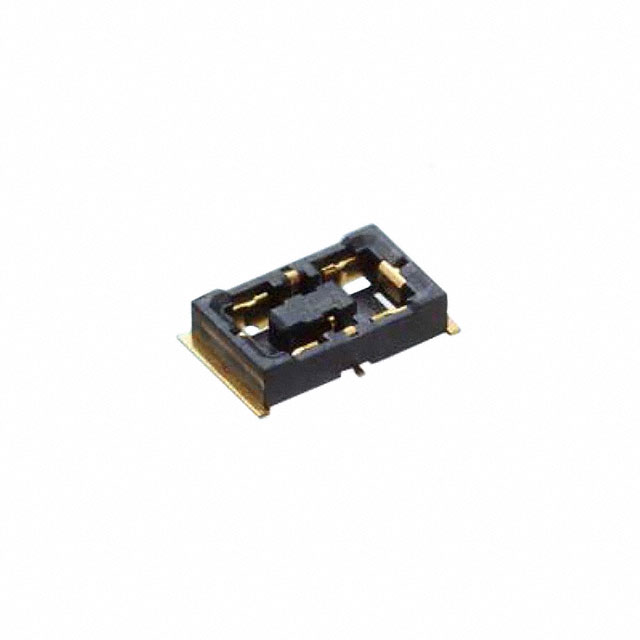

BM22-4S-V(53)

Active

Hirose Electric USA, Inc.

CONN RCPT 4POS GOLD SMD

Deep-Dive with AI

DocumentsBM22 Series Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BM22-4S-V(53)

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	1.97 Áin
Contact Finish Thickness - Mating	0.05 Ám
Contact Finish Thickness - Post	Flash
Contact Material	Copper Alloy
Contact Type	Center Strip Contact
Current Rating (Amps)	0.3 A, 4 A
Fastening Type	Friction Lock
Features	Pick and Place
Insulation Color	Black
Insulation Height	0.9 mm
Insulation Height	0.035 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mated Stacking Heights	0.9 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Style	Board to FPC
Termination	Solder
Voltage Rating	50 V

BM22 Series

Part	Contact Type	Insulation Height	Insulation Height	Features	Mated Stacking Heights	Termination	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Connector Type	Insulation Material	Current Rating (Amps)	Contact Finish - Mating	Number of Rows	Material Flammability Rating	Mounting Type	Fastening Type	Number of Positions Loaded	Contact Finish - Post	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Pitch - Mating	Pitch - Mating	Voltage Rating	Contact Material	Number of Positions	Contact Shape	Shrouding
Hirose Electric USA, Inc. BM22-6S-V(51)	Center Strip Contact	0.9 mm	0.035 in	Pick and Place	0.9 mm	Solder	Black	1.97 Áin	0.05 Ám	Board to FPC	Receptacle	Liquid Crystal Polymer (LCP)	0.3 A 4 A	Gold	2	UL94 V-0	Surface Mount	Friction Lock	All	Gold	Flash	-35 °C	85 °C	4	6	2	0.016 in	0.4 mm	50 V	Copper Alloy
Hirose Electric USA, Inc. BM22-4S-V(53)	Center Strip Contact	0.9 mm	0.035 in	Pick and Place	0.9 mm	Solder	Black	1.97 Áin	0.05 Ám	Board to FPC	Receptacle	Liquid Crystal Polymer (LCP)	0.3 A 4 A	Gold	2	UL94 V-0	Surface Mount	Friction Lock	All	Gold	Flash	-35 °C	85 °C						50 V	Copper Alloy	4
Hirose Electric USA, Inc. BM22-4S-V(78)	Center Strip Contact	0.9 mm	0.035 in	Pick and Place	0.9 mm	Solder	Black	30 Áin	0.76 Ám	Board to FPC	Receptacle	Liquid Crystal Polymer (LCP)	0.3 A 4 A	Gold	2	UL94 V-0	Surface Mount	Friction Lock	All	Gold	Flash	-35 °C	85 °C						50 V	Copper Alloy	4
Hirose Electric USA, Inc. BM22-6S-V(78)	Center Strip Contact					Solder	Black	12 µin	0.3 µm		Receptacle	Liquid Crystal Polymer (LCP)		Gold	2	UL94 V-0	Through Hole	Push-Pull	All	Tin		-35 °C	85 °C				0.016 in	0.4 mm	50 VAC	Copper Alloy	6	Square
Hirose Electric USA, Inc. BM22-6S-V(53)	Center Strip Contact	0.9 mm	0.035 in	Pick and Place	0.9 mm	Solder	Black	1.97 Áin	0.05 Ám	Board to FPC	Receptacle	Liquid Crystal Polymer (LCP)	0.3 A 4 A	Gold	2	UL94 V-0	Surface Mount	Friction Lock	All	Gold	Flash	-35 °C	85 °C	4	6	2	0.016 in	0.4 mm	50 V	Copper Alloy
Hirose Electric USA, Inc. BM22-4P-V(78)	Outer Shroud Contact	0.75 mm	0.03 in		0.9 mm	Solder	Black	30 Áin	0.76 Ám		Header	Liquid Crystal Polymer (LCP)		Gold		UL94 V-0	Surface Mount	Friction Lock	All			-35 °C	85 °C						50 V	Copper Alloy	4		Shrouded - 4 Wall
Hirose Electric USA, Inc. BM22-4S-V(51)	Center Strip Contact	0.9 mm	0.035 in	Pick and Place	0.9 mm	Solder	Black	1.97 Áin	0.05 Ám	Board to FPC	Receptacle	Liquid Crystal Polymer (LCP)	0.3 A 4 A	Gold	2	UL94 V-0	Surface Mount	Friction Lock	All	Gold	Flash	-35 °C	85 °C						50 V	Copper Alloy	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.20
		10	$ 1.01
		25	$ 0.97
		50	$ 0.95
		100	$ 0.91
		250	$ 0.83
		500	$ 0.75
	Digi-Reel®	1	$ 1.20
		10	$ 1.01
		25	$ 0.97
		50	$ 0.95
		100	$ 0.91
		250	$ 0.83
		500	$ 0.75
	Tape & Reel (TR)	1000	$ 0.66
		2000	$ 0.62
		3000	$ 0.60
		5000	$ 0.58
		10000	$ 0.55

Description

General part information

BM22 Series

4 (2 + 2 Power) Position Receptacle Connector Surface Mount Gold

Documents

Technical documentation and resources

BM22 Series Datasheet

Datasheet
