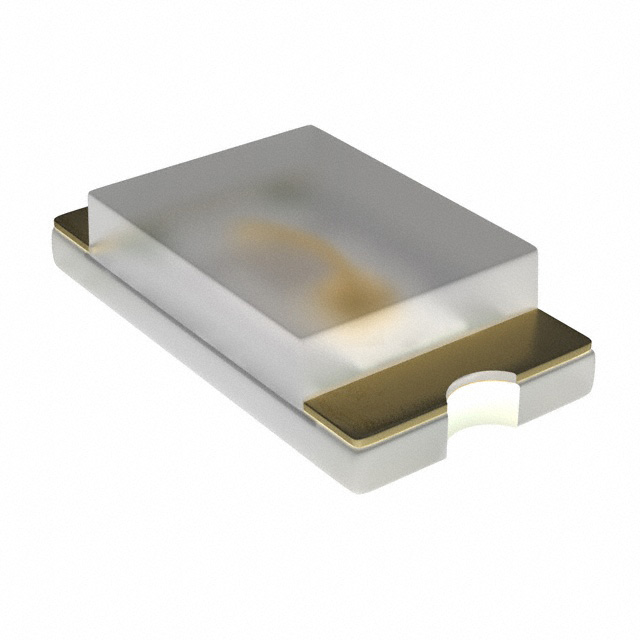

LW Q38G-Q1OO-3K6L-1-5-R18
Activeams-OSRAM USA INC.
LED COOL WHITE DIFFUSED 0603 SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LW Q38G-Q1OO-3K6L-1-5-R18
Activeams-OSRAM USA INC.
LED COOL WHITE DIFFUSED 0603 SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LW Q38G-Q1OO-3K6L-1-5-R18 |
|---|---|
| Color | Cool, White |
| Configuration | Standard |
| Current - Test | 5 mA |
| Height (Max) [Max] [z] | 0.4 mm |
| Lens Color | Yellow |
| Lens Transparency | Diffused |
| Millicandela Rating | 147.5 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.8 mm |
| Viewing Angle | 150 °, 130 ° |
| Voltage - Forward (Vf) (Typ) | 2.85 V |
| Wavelength - Dominant | 8200 K |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.37 | |
| 10 | $ 0.29 | |||
| 100 | $ 0.13 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.10 | |||
| 2000 | $ 0.09 | |||
| Digi-Reel® | 1 | $ 0.37 | ||
| 10 | $ 0.29 | |||
| 100 | $ 0.13 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.10 | |||
| 2000 | $ 0.09 | |||
| Tape & Reel (TR) | 4000 | $ 0.09 | ||
| 8000 | $ 0.08 | |||
| 12000 | $ 0.07 | |||
| 28000 | $ 0.06 | |||
| 100000 | $ 0.06 | |||
Description
General part information
LWQ38G Series
White, Cool 8200K LED Indication - Discrete 2.85V 0603 (1608 Metric)
