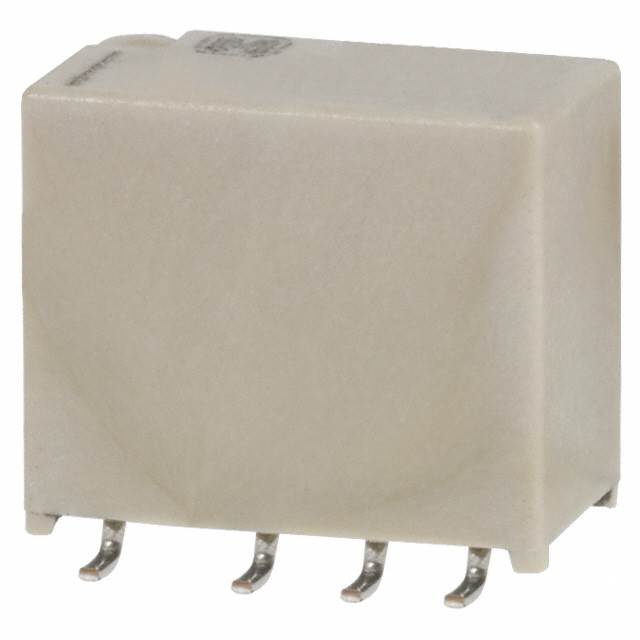

AGN260S03

Active

Panasonic Electric Works

RELAY TELECOM DPDT 1A 3V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRelay Technical Info How to Read Date Codes +2

AGN260S03

Active

Panasonic Electric Works

RELAY TELECOM DPDT 1A 3V

Deep-Dive with AI

DocumentsRelay Technical Info How to Read Date Codes +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AGN260S03

Approval Agency	BSI, cURus
Coil Current	33.3 mA
Coil Resistance	90 Ohms
Coil Type	Non Latching
Contact Form	DPDT (2 Form C)
Contact Material	Silver Palladium (AgPd), Gold (Au)
Contact Rating (Current)	1 A
Load - Max Switching	125 VA, 110 W
Mounting Type	Surface Mount
Must Operate Voltage	2.4 VDC
Must Release Voltage	0.3 VDC
Operate Time	4 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	Telecom
Release Time	4 ms
Seal Rating	Sealed - Fully
Switching Voltage	110 VDC, 125 VAC
Termination Style	Gull Wing

AGN260 Series

Part	Coil Resistance	Relay Type	Operate Time	Load - Max Switching	Seal Rating	Approval Agency	Coil Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Switching Voltage	Contact Rating (Current)	Must Release Voltage	Must Operate Voltage	Coil Current	Contact Form	Release Time	Coil Type	Termination Style	Mounting Type
Panasonic Electric Works AGN260A09Z	810 Ohms	General Purpose	4 ms	110 W 125 VA	Sealed - Fully	BSI cURus	9 VDC	-40 °C	70 °C	Gold (Au) Silver Palladium (AgPd)	110 VDC 125 VAC	1 A	0.9 VDC	7.2 VDC	11.1 mA	DPDT (2 Form C)	4 ms	Non Latching	Gull Wing	Surface Mount
Panasonic Electric Works AGN260A1H	22.5 Ohms	Telecom	4 ms	110 W 125 VA	Sealed - Fully	BSI cURus	1.5 VDC	-40 °C	70 °C	Gold (Au) Silver Palladium (AgPd)	110 VDC 125 VAC	1 A	0.15 VDC	1.2 VDC	66.7 mA	DPDT (2 Form C)	4 ms	Non Latching	Gull Wing	Surface Mount
Panasonic Electric Works AGN260S06X	360 Ohms	General Purpose	4 ms	110 W 125 VA	Sealed - Fully	BSI cURus		-40 °C	70 °C	Gold (Au) Silver Palladium (AgPd)	110 VDC 125 VAC	1 A	0.6 VDC	4.8 VDC	16.7 mA	DPDT (2 Form C)	4 ms	Non Latching	Gull Wing	Surface Mount
Panasonic Electric Works AGN260A1HY	22.5 Ohms	General Purpose	4 ms	110 W 125 VA	Sealed - Fully	BSI cURus	1.5 VDC	-40 °C	70 °C	Gold (Au) Silver Palladium (AgPd)	110 VDC 125 VAC	1 A	0.15 VDC	1.2 VDC	66.7 mA	DPDT (2 Form C)	4 ms	Non Latching	Gull Wing	Surface Mount
Panasonic Electric Works AGN260A1HW	22.5 Ohms	General Purpose	4 ms	110 W 125 VA	Sealed - Fully	BSI cURus	1.5 VDC	-40 °C	70 °C	Gold (Au) Silver Palladium (AgPd)	110 VDC 125 VAC	1 A	0.15 VDC	1.2 VDC	66.7 mA	DPDT (2 Form C)	4 ms	Non Latching	Gull Wing	Surface Mount
Panasonic Electric Works AGN260A4HY	202.5 Ohms	General Purpose	4 ms	110 W 125 VA	Sealed - Fully	BSI cURus	4.5 VDC	-40 °C	70 °C	Gold (Au) Silver Palladium (AgPd)	110 VDC 125 VAC	1 A	0.45 VDC	3.6 VDC	22.2 mA	DPDT (2 Form C)	4 ms	Non Latching	Gull Wing	Surface Mount
Panasonic Electric Works AGN260A24W	4.8 kOhms	General Purpose	4 ms	110 W 125 VA	Sealed - Fully	BSI cURus	24 VDC	-40 °C	70 °C	Gold (Au) Silver Palladium (AgPd)	110 VDC 125 VAC	1 A	2.4 VDC	19.2 VDC	5 mA	DPDT (2 Form C)	4 ms	Non Latching	Gull Wing	Surface Mount
Panasonic Electric Works AGN260A1HZ	22.5 Ohms	General Purpose	4 ms	110 W 125 VA	Sealed - Fully	BSI cURus	1.5 VDC	-40 °C	70 °C	Gold (Au) Silver Palladium (AgPd)	110 VDC 125 VAC	1 A	0.15 VDC	1.2 VDC	66.7 mA	DPDT (2 Form C)	4 ms	Non Latching	Gull Wing	Surface Mount
Panasonic Electric Works AGN260S03	90 Ohms	Telecom	4 ms	110 W 125 VA	Sealed - Fully	BSI cURus		-40 °C	70 °C	Gold (Au) Silver Palladium (AgPd)	110 VDC 125 VAC	1 A	0.3 VDC	2.4 VDC	33.3 mA	DPDT (2 Form C)	4 ms	Non Latching	Gull Wing	Surface Mount
Panasonic Electric Works AGN260A06W	360 Ohms	General Purpose	4 ms	110 W 125 VA	Sealed - Fully	BSI cURus		-40 °C	70 °C	Gold (Au) Silver Palladium (AgPd)	110 VDC 125 VAC	1 A	0.6 VDC	4.8 VDC	16.7 mA	DPDT (2 Form C)	4 ms	Non Latching	Gull Wing	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 5.91
		10	$ 5.54
		25	$ 4.93
		50	$ 4.68
		100	$ 4.44
		250	$ 3.94
		500	$ 3.70
		1000	$ 3.45
