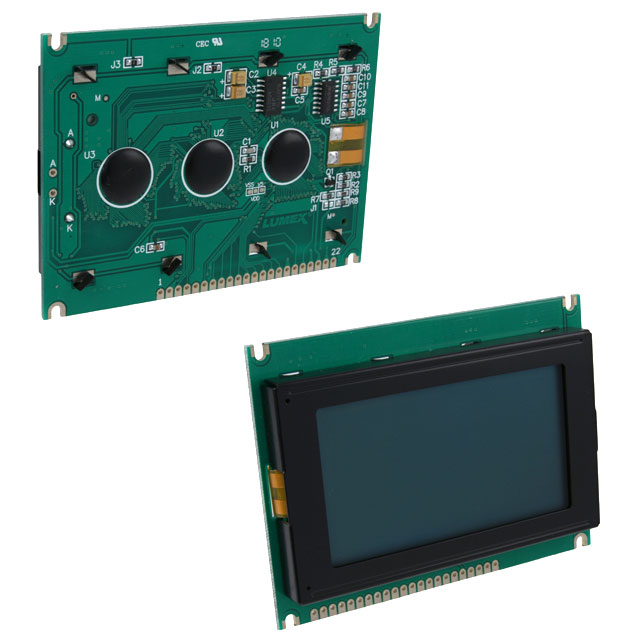

LCR-U12864GSF-WH
ActiveLumex Opto/Components Inc.
LCD MOD GRAPHIC 128X64 STN
Deep-Dive with AI
Search across all available documentation for this part.
LCR-U12864GSF-WH
ActiveLumex Opto/Components Inc.
LCD MOD GRAPHIC 128X64 STN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LCR-U12864GSF-WH |
|---|---|
| Background Color | Gray |
| Backlight | LED - White |
| Display Mode | Transflective |
| Display Type | STN - Super-Twisted Nematic |
| Dot Pitch [x] | 0.52 mm |
| Dot Pitch [y] | 0.52 mm |
| Dot Pixels [x] | 128 |
| Dot Pixels [y] | 64 |
| Dot Size [custom] | 0.48 mm |
| Dot Size [custom] | 0.48 mm |
| Graphics Color | Blue |
| Interface | Parallel, 8-Bit |
| Viewing Area [x] | 70 mm |
| Viewing Area [y] | 38.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LCR-U12864 Series
Graphic LCD Display Module Transflective Blue STN - Super-Twisted Nematic Parallel, 8-Bit 128 x 64
Documents
Technical documentation and resources
No documents available
