A604CHQR
ActiveHoffman Enclosures, Inc.
JUNCTION BOX STL 5.98"L X 4.02"W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A604CHQR
ActiveHoffman Enclosures, Inc.
JUNCTION BOX STL 5.98"L X 4.02"W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A604CHQR |
|---|---|
| Area (L x W) [custom] | 155 cm² |
| Area (L x W) [custom] | 24 in² |
| Color | Gray |
| Container Type | Junction Box |
| Design | Hinged Door, Lid |
| Features | Sealing Gasket, Wall Mount |
| Height [z] | 2.992 in |
| Height [z] | 76 mm |
| Material | Metal, Steel |
| Ratings | IP65, NEMA 13, UL-508A, NEMA 12 |
| Size / Dimension [x] | 5.984 in |
| Size / Dimension [x] | 152 mm |
| Size / Dimension [y] | 4.016 in |
| Size / Dimension [y] | 102 mm |
| Thickness | 16 Gauge |
| Weight | 2.5 lbs |
| Weight | 1.1 kg |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 112.72 | |
| 5 | $ 96.36 | |||
| 10 | $ 90.13 | |||
Description
General part information
A604 Series

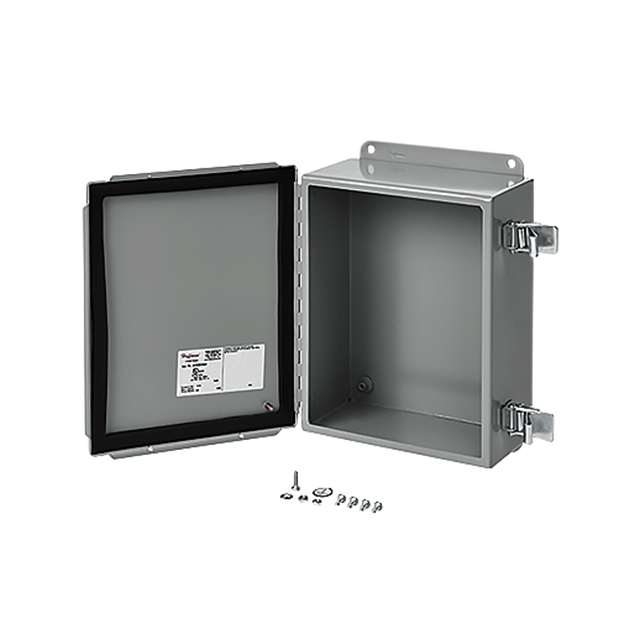

Junction Box Metal, Steel Gray Hinged Door, Lid 5.984" L x 4.016" W (152.00mm x 102.00mm) X 2.992" (76.00mm)
