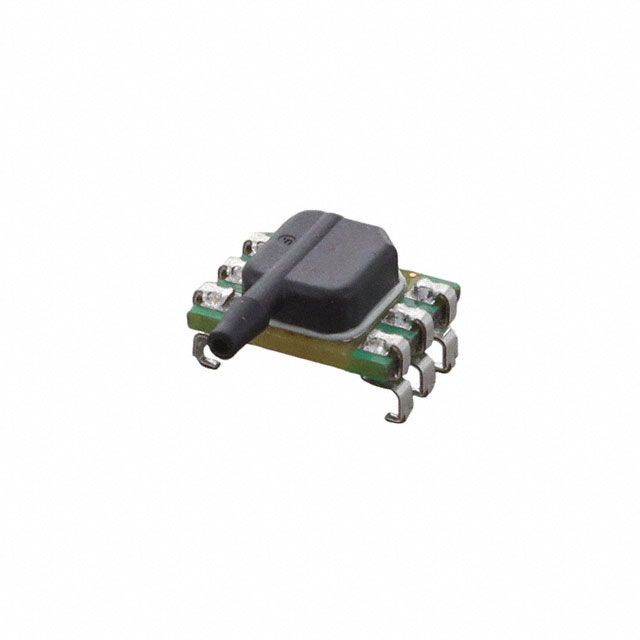

ABP2MRNT016KG2A3XX

Active

Honeywell Sensing and Productivity Solutions

SENSOR 2.32PSIG 14BIT 6SMD

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SENSOR 2.32PSIG 14BIT 6SMD

Technical Specifications

Parameters and characteristics for this part

Specification	ABP2MRNT016KG2A3XX

Accuracy	0.25 %
Features	Temperature Compensated, Amplified Output
Mounting Type	Surface Mount
Operating Pressure	2.32 PSI
Operating Pressure	16 kPa
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Output	14 b
Output Type	I2C
Package / Case	Side Port, 6-SMD, J-Lead
Pressure Type	Vented Gauge
Supplier Device Package	6-SMD
Termination Style	J Lead
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	1.8 V

Part	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Pressure Type	Output	Output Type	Termination Style	Operating Pressure	Operating Pressure	Features	Supplier Device Package	Mounting Type	Accuracy
Honeywell Sensing and Productivity Solutions ABP2MRNT016KG2A3XX	6-SMD J-Lead Side Port	3.6 V	1.8 V	-40 °C	110 °C	Vented Gauge	14 b	I2C	J Lead	2.32 PSI	16 kPa	Amplified Output Temperature Compensated	6-SMD	Surface Mount	0.25 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor 2.32PSI (16kPa) Vented Gauge 14 b 6-SMD, J-Lead, Side Port
