2SA1015-GR-AP

Obsolete

Micro Commercial Components

TRANS PNP 50V 0.15A TO92

Search across all available documentation for this part.

Obsolete

Micro Commercial Components

TRANS PNP 50V 0.15A TO92

Technical Specifications

Parameters and characteristics for this part

Specification	2SA1015-GR-AP

Current - Collector (Ic) (Max) [Max]	150 mA
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce	200 hFE
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C

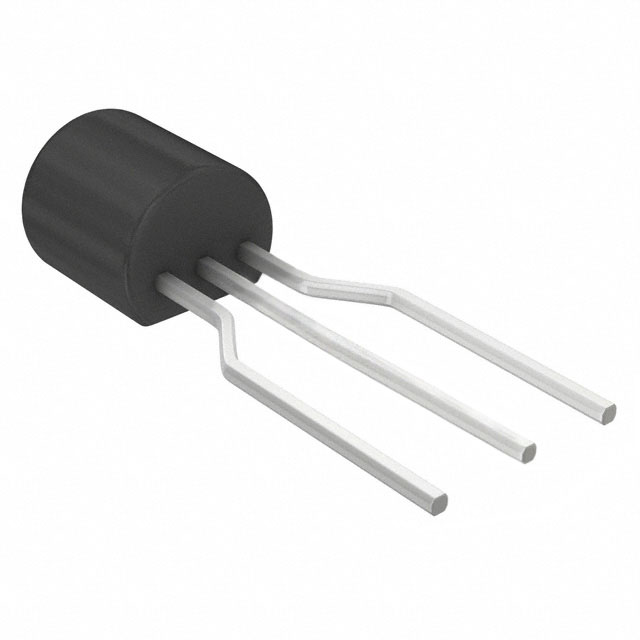

Package / Case	TO-226-3, TO-92-3
Power - Max [Max]	400 mW
Supplier Device Package	TO-92
Transistor Type	PNP
Voltage - Collector Emitter Breakdown (Max) [Max]	50 V

Part	Supplier Device Package	Transistor Type	Power - Max [Max]	Mounting Type	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Current - Collector Cutoff (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce
Micro Commercial Components 2SA1015-GR-AP	TO-92	PNP	400 mW	Through Hole	TO-226-3 TO-92-3	-55 °C	150 °C	100 nA	150 mA	50 V	200 hFE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar (BJT) Transistor PNP 50 V 150 mA 80MHz 400 mW Through Hole TO-92
