5020.017.216

Active

Flexa

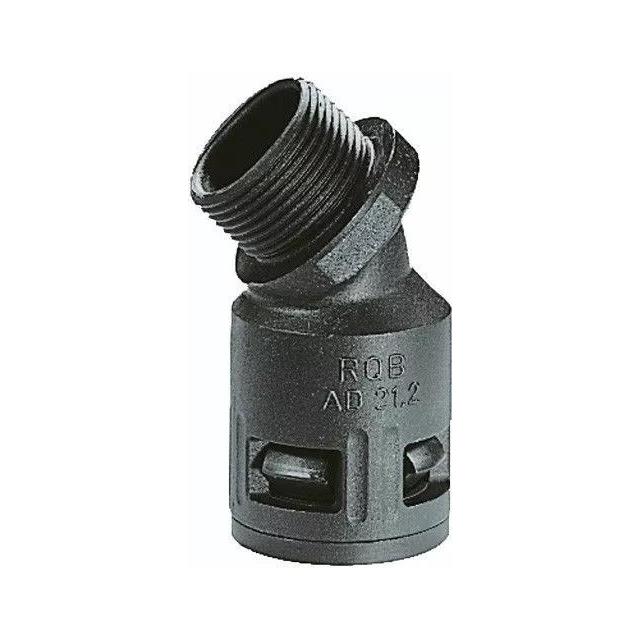

RQB45, 45-DEGREE CONNECTOR, IP69

Search across all available documentation for this part.

Active

Flexa

RQB45, 45-DEGREE CONNECTOR, IP69

Technical Specifications

Parameters and characteristics for this part

Specification	5020.017.216

Color	Black
Ingress Protection	IP68, IP69K
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	43.94 mm
Outside Cable Diameter (Max) [Max] [diameter]	1.73 in
Outside Cable Diameter (Min) [Min] [diameter]	0.91 in
Outside Cable Diameter (Min) [Min] [diameter]	23.11 mm
Thread Length	0.55 in
Thread Length	13.97 mm
Thread Size	1" NPT
Type	Cable Grip - 45°

Part	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Color	Type	Thread Size	Operating Temperature [Min]	Operating Temperature [Max]	Material	Thread Length	Thread Length	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Ingress Protection
Flexa 5020.017.216	0.91 in	23.11 mm	Black	Cable Grip - 45°	1" NPT	-40 °C	120 °C	Polyamide (PA) Nylon	0.55 in	13.97 mm	43.94 mm	1.73 in	IP68 IP69K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 194.80

General part information

Cable Grip - 45° Polyamide (PA), Nylon 1" NPT Black
