SJS820210

Active

AMPHENOL PCD

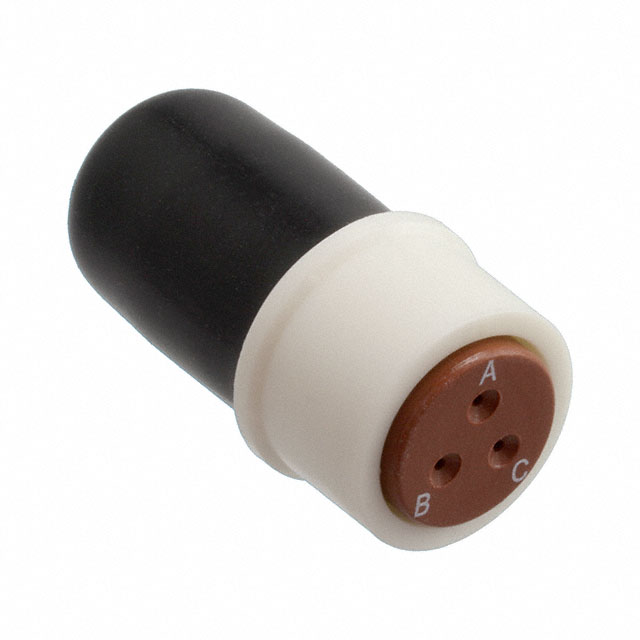

CIRCULAR CONNECTOR, MIL-T-81714 EQUIVALENT, SJS QUICKCONNECT SERIES, CABLE MOUNT RECEPTACLE

Search across all available documentation for this part.

Active

AMPHENOL PCD

CIRCULAR CONNECTOR, MIL-T-81714 EQUIVALENT, SJS QUICKCONNECT SERIES, CABLE MOUNT RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Specification	SJS820210

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Crimp
Fastening Type	Detent Lock
Housing Color	White
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Operating Temperature [Max]	203 °F
Operating Temperature [Min]	-55 °C
Orientation	B
Shell Material	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	8
Shielding	Unshielded
Type	For Male Pins

Part	Current Rating (Amps)	Primary Material	Fastening Type	Connector Type	Contact Finish - Mating	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Mounting Type	Shell Material	Shell Size - Insert	Orientation	Note	Shielding	Type	Housing Color	Contact Shape	Contact Type	Contact Size	Material Flammability Rating
AMPHENOL PCD SJS820101	7.5 A	Plastic	Detent Lock	Female Sockets Plug	Gold	Environment Sealed	125 °C	-65 ░C	Crimp	Free Hanging (In-Line)	Polyamide (PA66) Nylon 6/6	8	A
AMPHENOL PCD SJS820210			Detent Lock	Receptacle Housing		IP67 - Dust Tight Waterproof	203 °F	-55 °C		Free Hanging (In-Line)	Polyamide (PA66) Nylon 6/6	8	B	Contacts Not Included	Unshielded	For Male Pins	White	Circular	Crimp	20	UL94 V-0
AMPHENOL PCD SJS820120			Detent Lock	Plug Housing		IP67 - Dust Tight Waterproof	203 °F	-55 °C		Free Hanging (In-Line)	Polyamide (PA66) Nylon 6/6	8	C	Contacts Not Included	Unshielded	For Female Sockets	Blue	Circular	Crimp	20	UL94 V-0
AMPHENOL PCD SJS820220			Detent Lock	Receptacle Housing		IP67 - Dust Tight Waterproof	203 °F	-55 °C		Free Hanging (In-Line)	Polyamide (PA66) Nylon 6/6	8	C	Contacts Not Included	Unshielded	For Male Pins	Blue	Circular	Crimp	20	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle Housing Free Hanging (In-Line)
