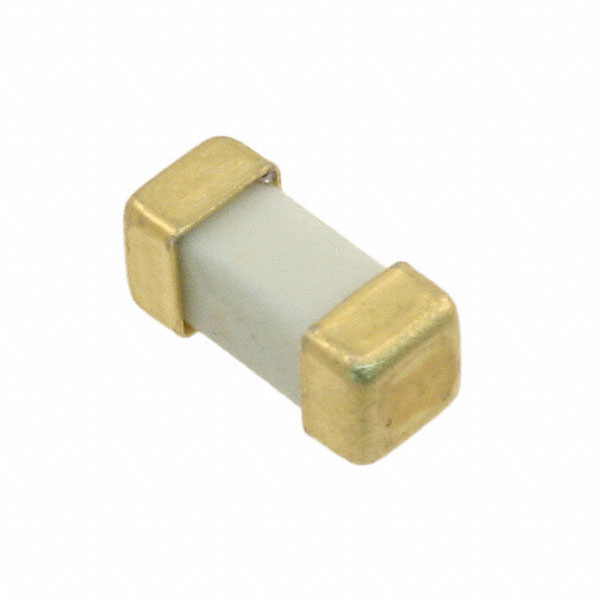

044903.5MR

Active

Littelfuse/Commercial Vehicle Products

FUSE CHIP SLOW BLOW ACTING 3.5A 125V SMD SOLDER PAD 6.1 X 2.69 X 2.69MM CERAMIC T/R PSE/CULUS

Search across all available documentation for this part.

Active

Littelfuse/Commercial Vehicle Products

FUSE CHIP SLOW BLOW ACTING 3.5A 125V SMD SOLDER PAD 6.1 X 2.69 X 2.69MM CERAMIC T/R PSE/CULUS

Technical Specifications

Parameters and characteristics for this part

Specification	044903.5MR

Approval Agency	PSE, cURus
Breaking Capacity @ Rated Voltage	50 A
Current Rating (Amps)	3.5 A
DC Cold Resistance	0.0261 Ohms
Fuse Type	Board Mount
Melting I²t	32.7
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	2-SMD, Square End Block
Response Time	Slow Blow
Size / Dimension [x]	6.1 mm
Size / Dimension [x]	0.24 in
Size / Dimension [y]	0.106 in
Size / Dimension [y]	2.69 mm
Size / Dimension [z]	2.69 mm
Size / Dimension [z]	0.106 in
Voltage Rating - AC	125 V
Voltage Rating - DC	125 VDC

FUSE 125V SB NANO2 LEAD-FREE 3.5A

Part	Package / Case	DC Cold Resistance	Voltage Rating - AC	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Response Time	Mounting Type	Melting I²t	Fuse Type	Current Rating (Amps)	Approval Agency	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Breaking Capacity @ Rated Voltage
Littelfuse/Commercial Vehicle Products 044903.5MR	2-SMD Square End Block	0.0261 Ohms	125 V	0.106 in	6.1 mm	2.69 mm	2.69 mm	0.24 in	0.106 in	Slow Blow	Surface Mount	32.7	Board Mount	3.5 A	cURus PSE	125 VDC	-55 °C	125 °C	50 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

FUSE 125V SB NANO2 LEAD-FREE 3.5A
