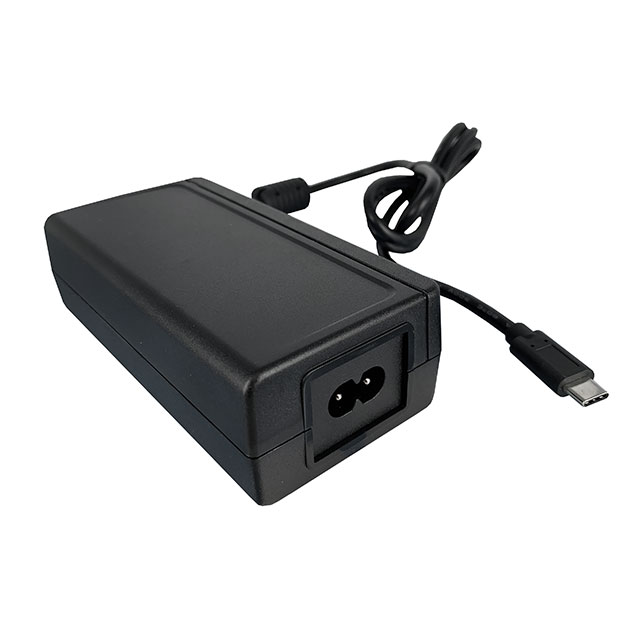

QADC-65-20-08CB
ActiveQualtek
AC/DC DESKTOP ADAPTER 20V 65W
Deep-Dive with AI
Search across all available documentation for this part.
QADC-65-20-08CB
ActiveQualtek
AC/DC DESKTOP ADAPTER 20V 65W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | QADC-65-20-08CB |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cULus, PSE, FCC, BSMI, CB, CE, RCM, GS |
| Cord Length | 1 m |
| Cord Length | 39.4 " |
| Current - Output (Max) [Max] | 3.25 A |
| Efficiency | Level VI |
| Form | Desktop (Class II) |
| Input Connector | IEC 320-C8 |
| Input Type | Cord |
| No Load Power Consumption | 100 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | USB C |
| Power (Watts) | 65 W |
| Region Utilized | International |
| Size / Dimension [x] | 118.6 mm |
| Size / Dimension [x] | 4.67 in |
| Size / Dimension [y] | 59.2 mm |
| Size / Dimension [y] | 2.33 in |
| Size / Dimension [z] | 36 mm |
| Size / Dimension [z] | 1.42 in |
| Voltage - Input [Max] | 240 VAC |
| Voltage - Input [Min] | 100 VAC |
| Voltage - Output | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 36.43 | |
| 5 | $ 35.87 | |||
| 10 | $ 35.31 | |||
| 25 | $ 33.63 | |||
| 50 | $ 32.51 | |||
| 100 | $ 30.26 | |||
| 250 | $ 29.82 | |||
Description
General part information
QADC-65 Series
20V 65 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
