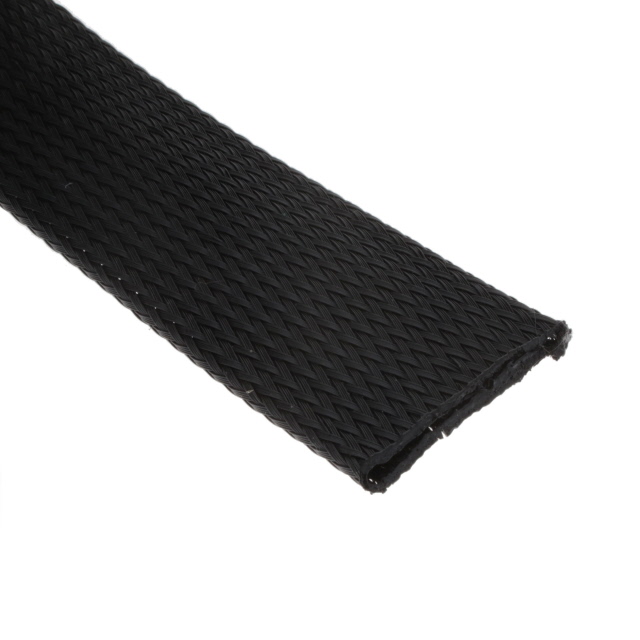

PTP1.75BK30
ActiveTechflex
EXPAND SLEEVE 1.25" X 30' BLACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PTP1.75BK30
ActiveTechflex
EXPAND SLEEVE 1.25" X 30' BLACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PTP1.75BK30 |
|---|---|
| Abrasion Protection | Abrasion Resistant, Fray Resistant |
| Color | Black |
| Diameter - Inside, Expanded [diameter] | 69.85 mm |
| Diameter - Inside, Expanded [diameter] | 2.75 in |
| Diameter - Inside, Non-Expanded [diameter] | 1.25 " |
| Diameter - Inside, Non-Expanded [diameter] | 31.75 mm |
| Environment Protection | UV Resistant |
| Length | 30 ' |
| Length | 9.14 m |
| Material | Polyethylene Terephthalate (PET) |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -70 °C |
| Type | Sleeve |
| Type Attributes | Expandable |
| Wall Thickness | 0.024 in |
| Wall Thickness | 0.61 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 48.98 | |
| 5 | $ 45.92 | |||
| 10 | $ 42.86 | |||
| 25 | $ 40.72 | |||
| 50 | $ 39.80 | |||
| 100 | $ 38.88 | |||
Description
General part information
PTP1.75 Series
Sleeve X 30.00' (9.14m) Black
Documents
Technical documentation and resources
